Sheet Pile Connectors

Sheet pile connectors are critical components in the assembly of steel wall systems, enabling smooth interlocking between piles at various angles and configurations. These connectors are especially useful in sheet pile wall and combined wall systems, where different sections must be joined to create robust, continuous retaining structures.

At Aema Steel, we offer a wide range of sheet pile connectors and corner sections designed to meet the structural demands of marine, port, and infrastructure projects. These corner sections and junction piles are widely used in custom wall geometries and complex applications, ensuring proper alignment and load transfer where standard piling solutions fall short.

The connectors we supply are manufactured to high-tolerance and durability standards, with options available for various shapes, lengths, and angles, delivering maximum flexibility across different project types.

REQUEST THE PRICE
Stacked steel sheet pile connectors, prepared for use in combined wall systems and marine construction.
Stack of steel sheet pile connectors with curved interlock profiles, prepared for use in corner joints and combined wall applications.

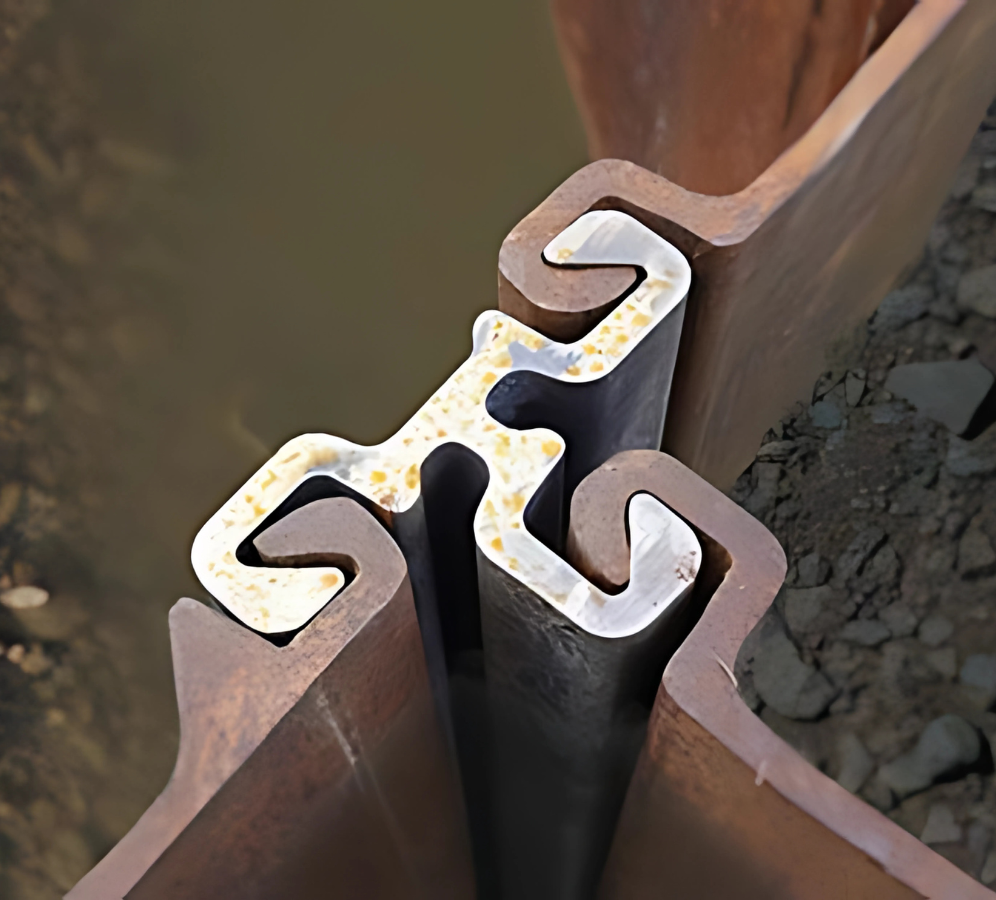

Close-up view of a T sheet pile connector interlocking with Z-profile sheet piles, used for corner or junction transitions in combined wall systems.

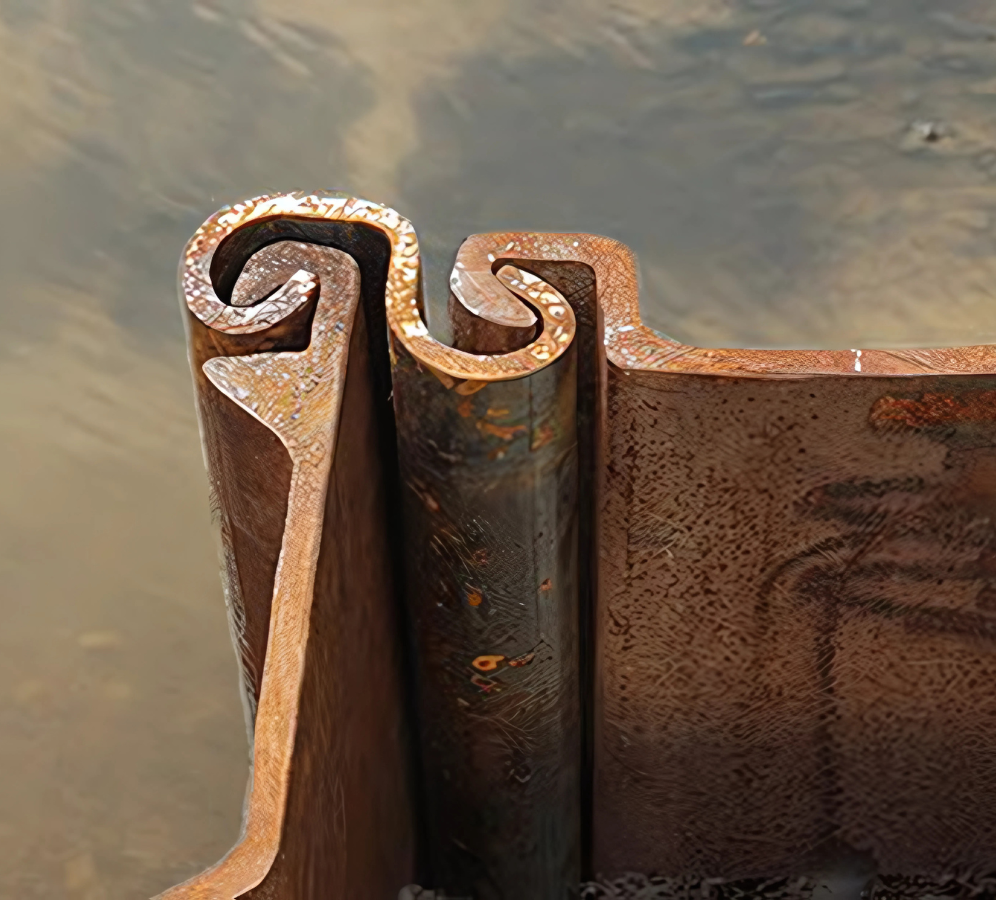

Close-up of LV20N steel sheet pile connector interlocking two sheet piles, designed for angular transitions in sheet pile walls and combined wall systems.

Advantages of Sheet Pile Connectors:

  • Suitable for use in sheet pile walls, combined wall systems and complex geometries
  • Enables secure interlocking at corners, angles, and terminations
  • Compatible with U-type and Z-type sheet piles, H beams and pipe piles configurations
  • Available in multiple shapes, lengths, and angles
  • Manufactured using durable, high-quality steel
  • Allows flexible design and construction in marine and infrastructure projects

Why Choose Aema Steel?

  • Full range of sheet pile connectors, corner sections, and junction piles
  • Experience with both cold-formed and hot-rolled systems
  • Technical assistance to select the right connector for each wall layout
  • Engineering support from the early stage of your project
  • Trusted supplier for contractors in the marine, port, and foundation sectors
  • Dedicated to helping customers build with confidence and precision

Contact us today to receive a tailored offer for your upcoming project.

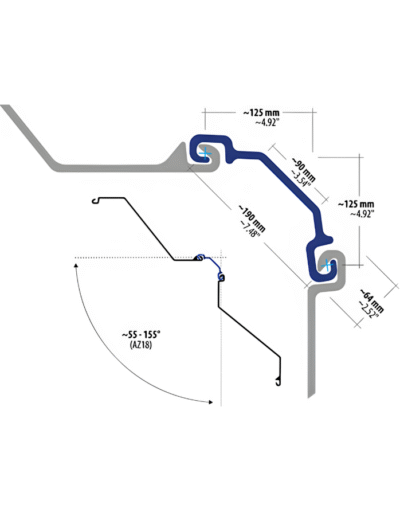

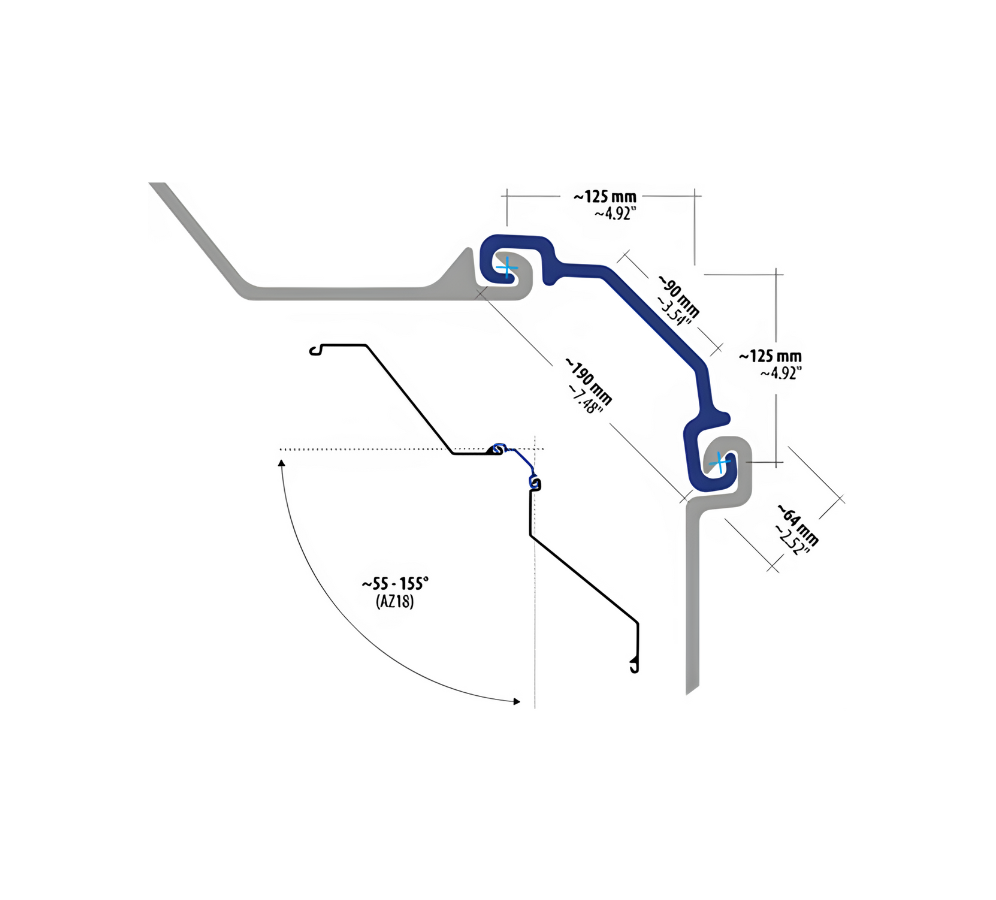

Dimensional drawing of ULTRA S Z-type connector with detailed measurements of interlocking components and rotation angle range from 55° to 155° for corner configurations.

1 ULTRA S Z pile

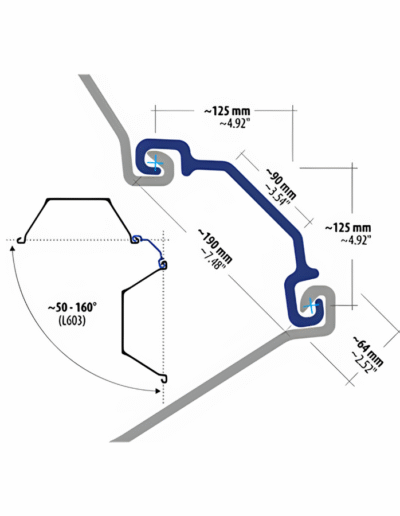

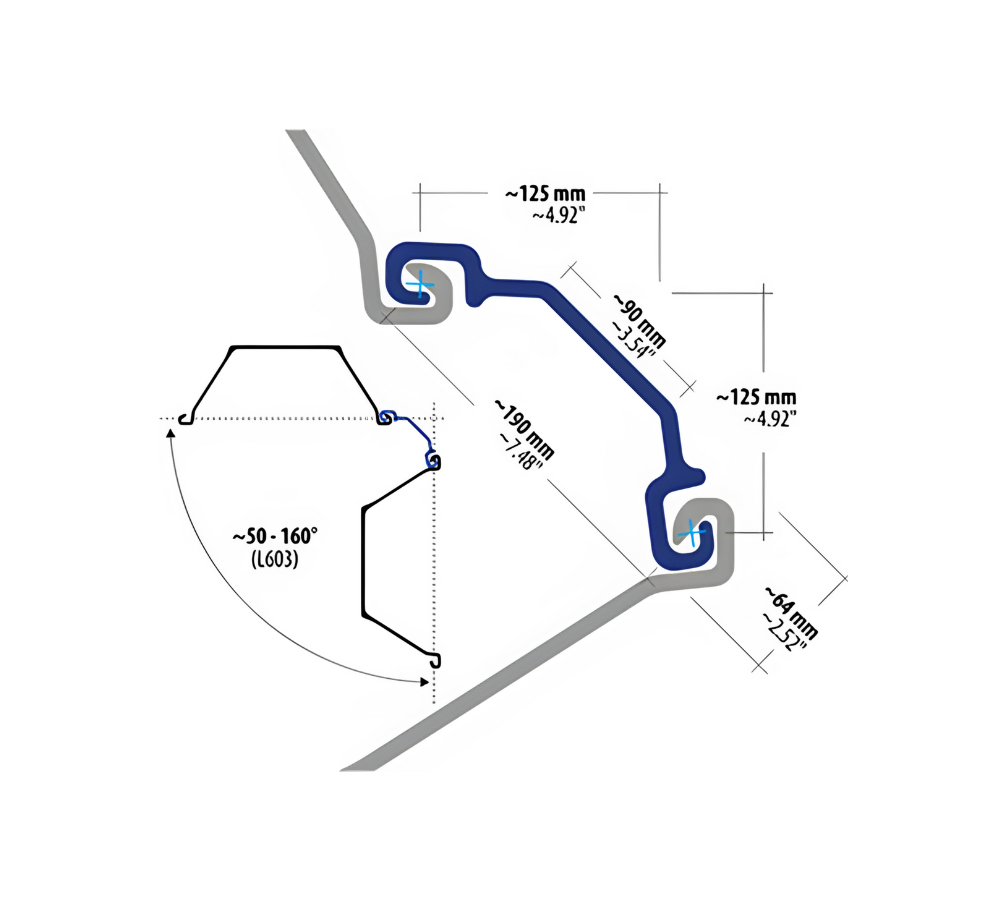

Dimensional diagram of ULTRA-S corner connector for U sheet piles, including measurements and adjustable corner angles for wall alignment

1.1 ULTRA-S U pile

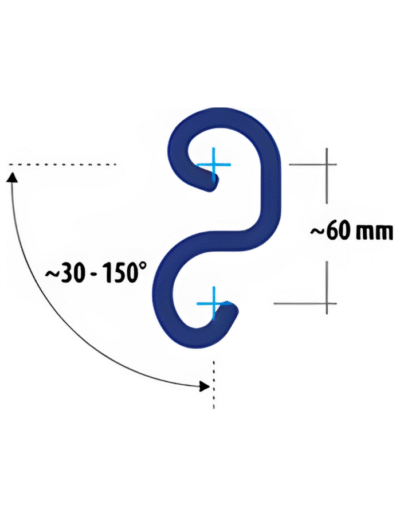

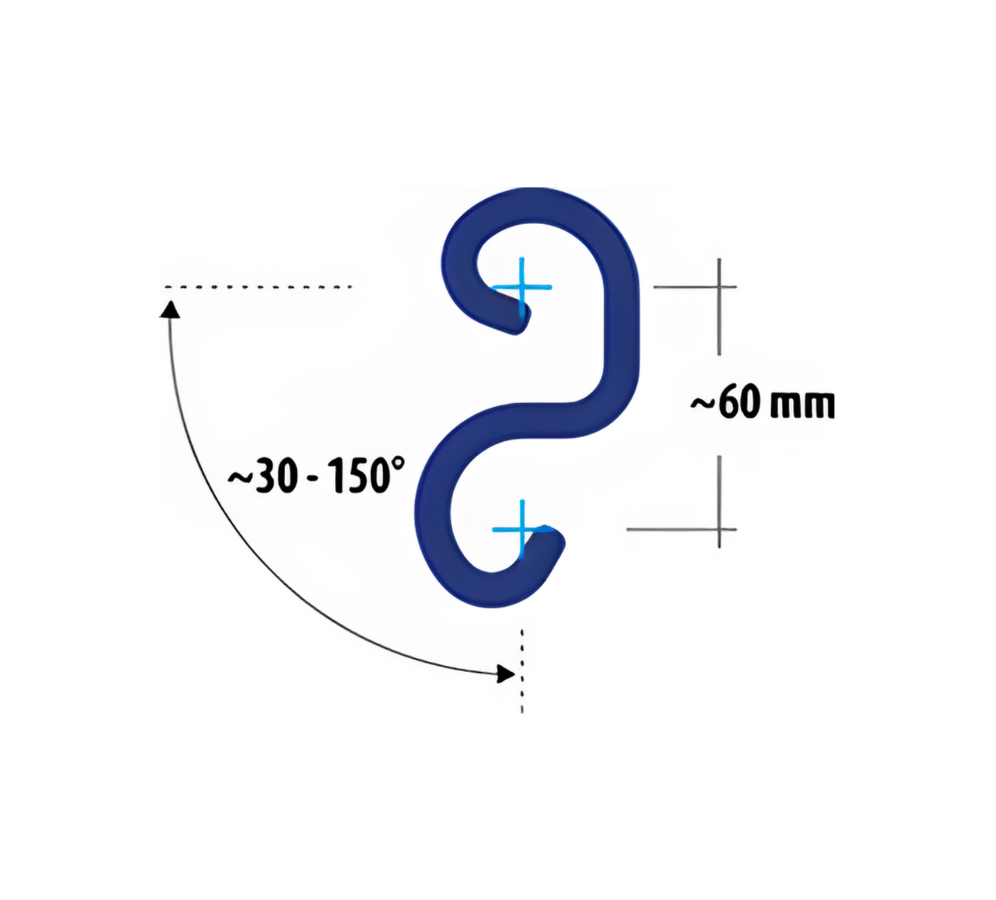

Technical illustration of LV 20N connector with dimensional data and angle flexibility for joining sheet piles at custom orientations.

2. LV 20N

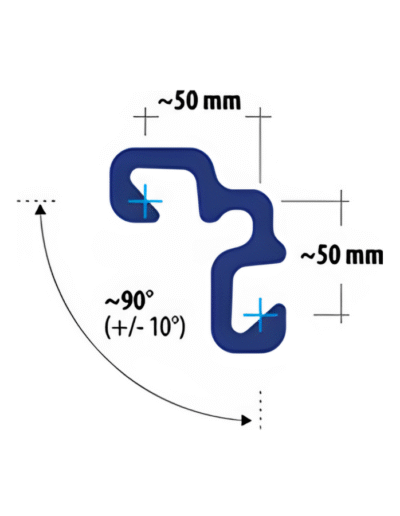

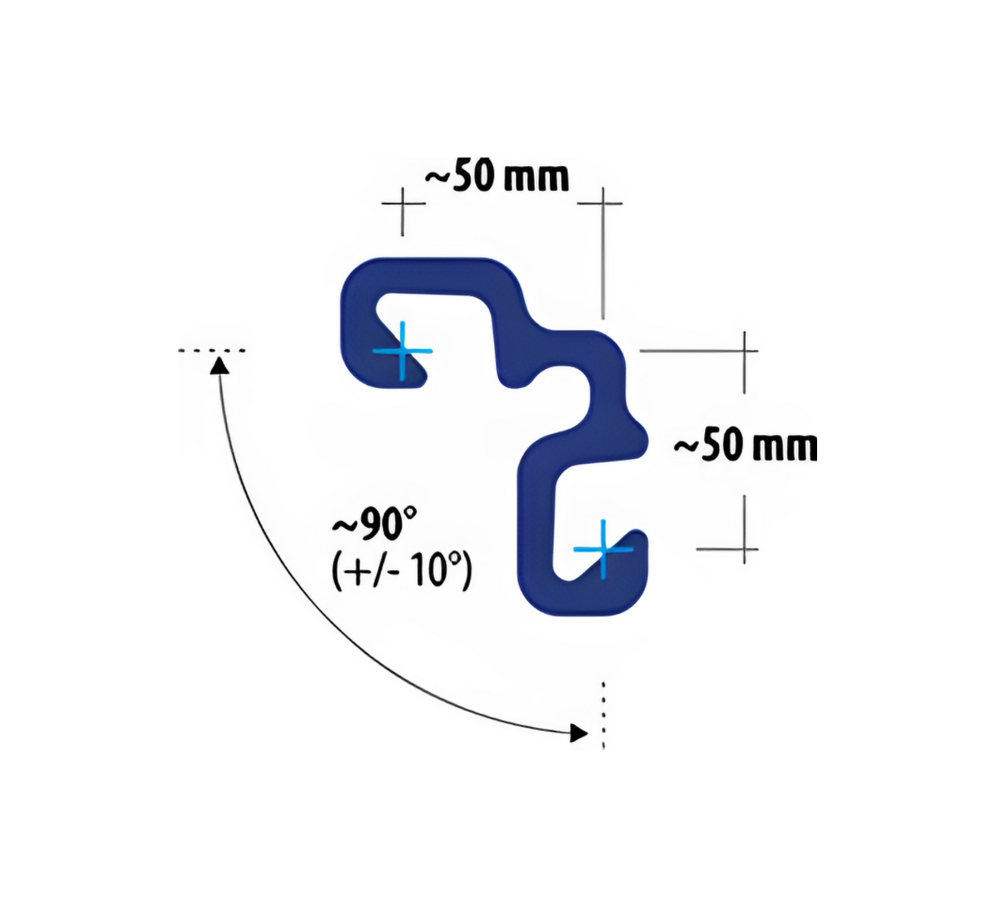

Diagram of LLS90 sheet pile connector with 90-degree interlock angle tolerance, 50 mm width, and detailed corner profile geometry.

3. LLS90

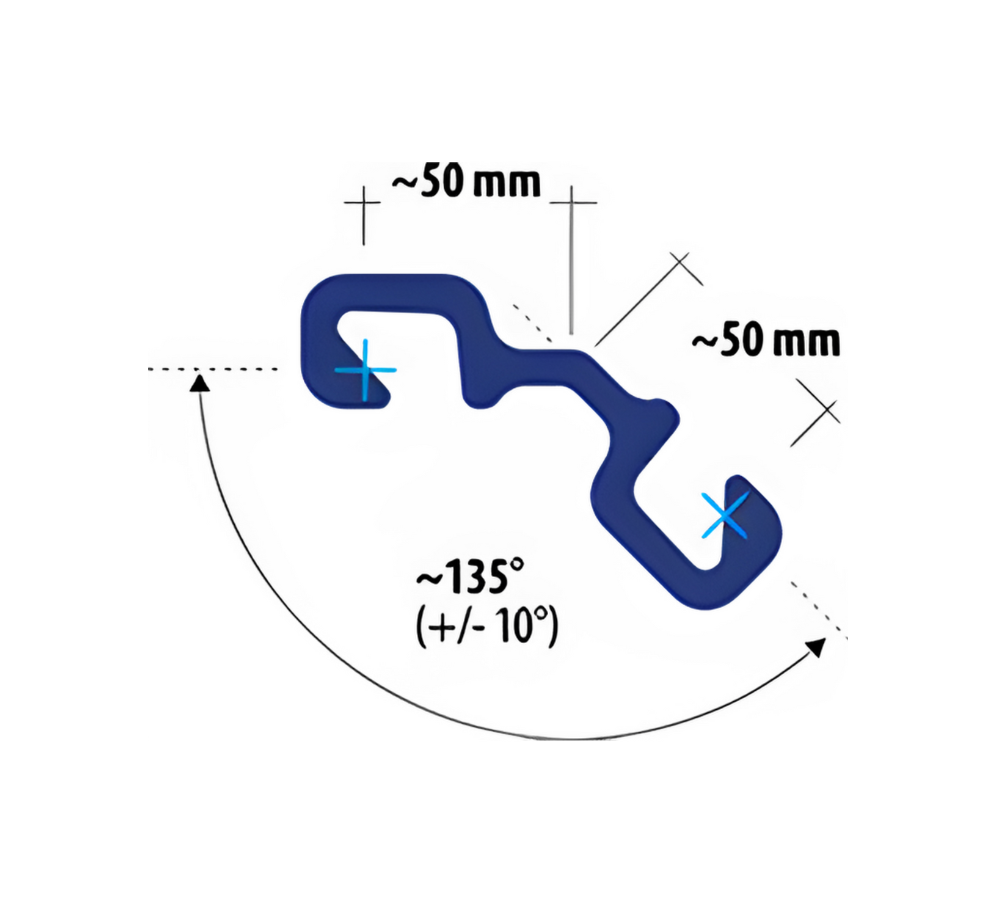

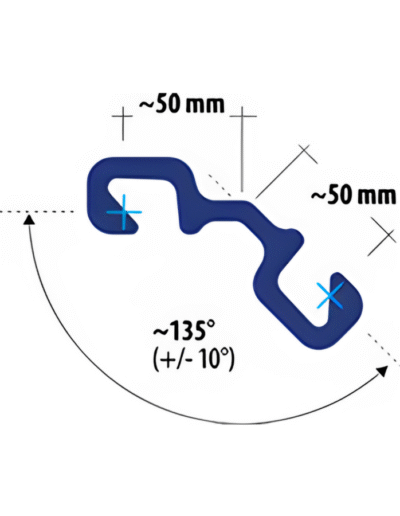

Diagram of LLS135 sheet pile connector showing 135-degree angle with ±10° tolerance and 50 mm width on both ends.

4. LLS135

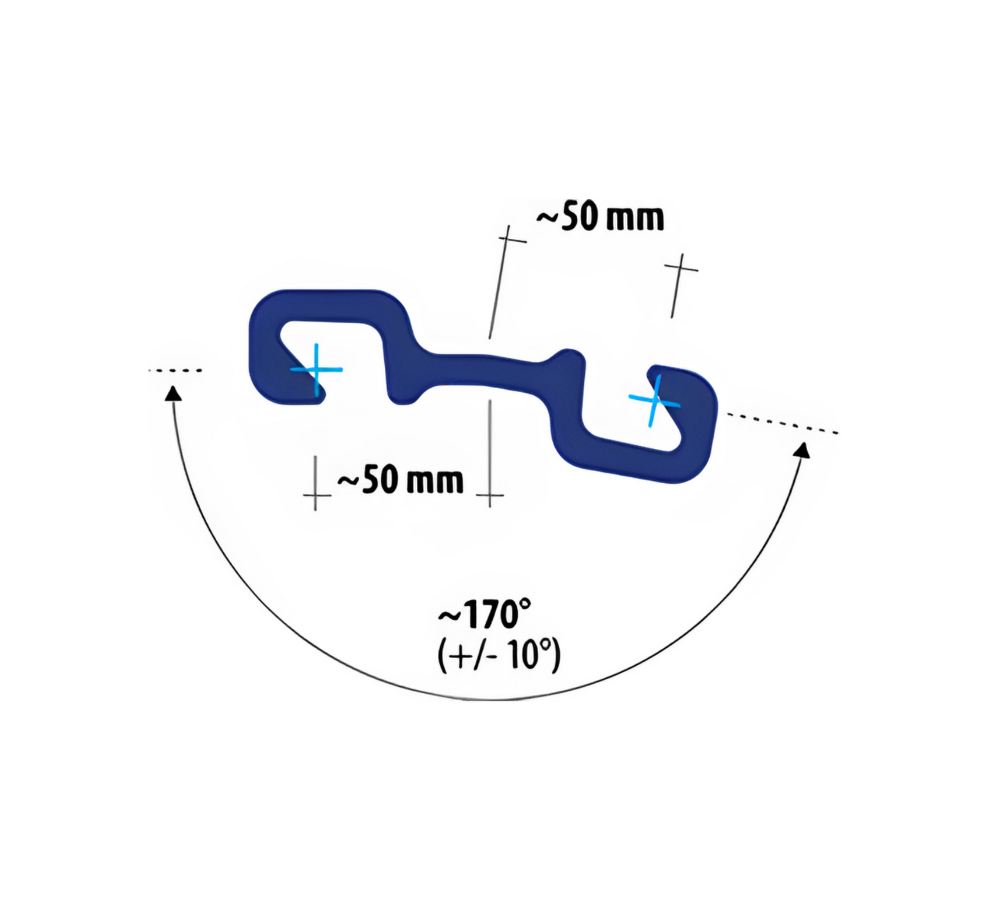

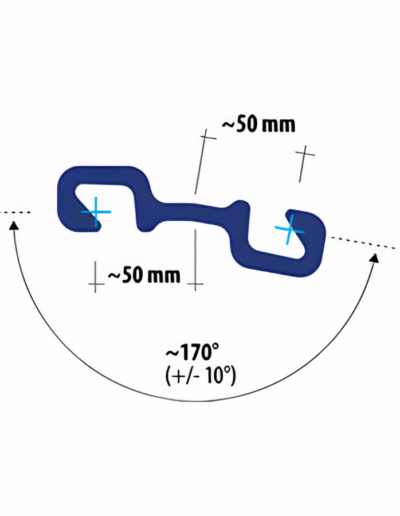

Diagram of LLS170 sheet pile connector showing 170-degree interlock angle with ±10° tolerance and 50 mm width on each side.

5. LLS170

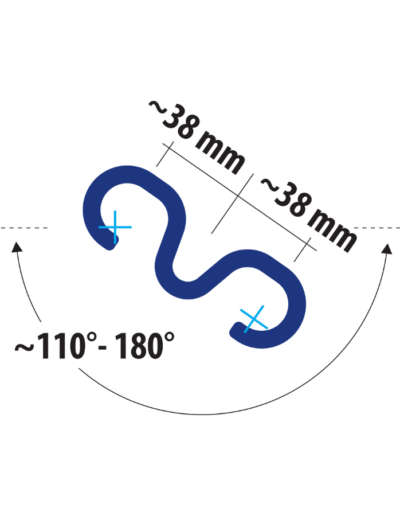

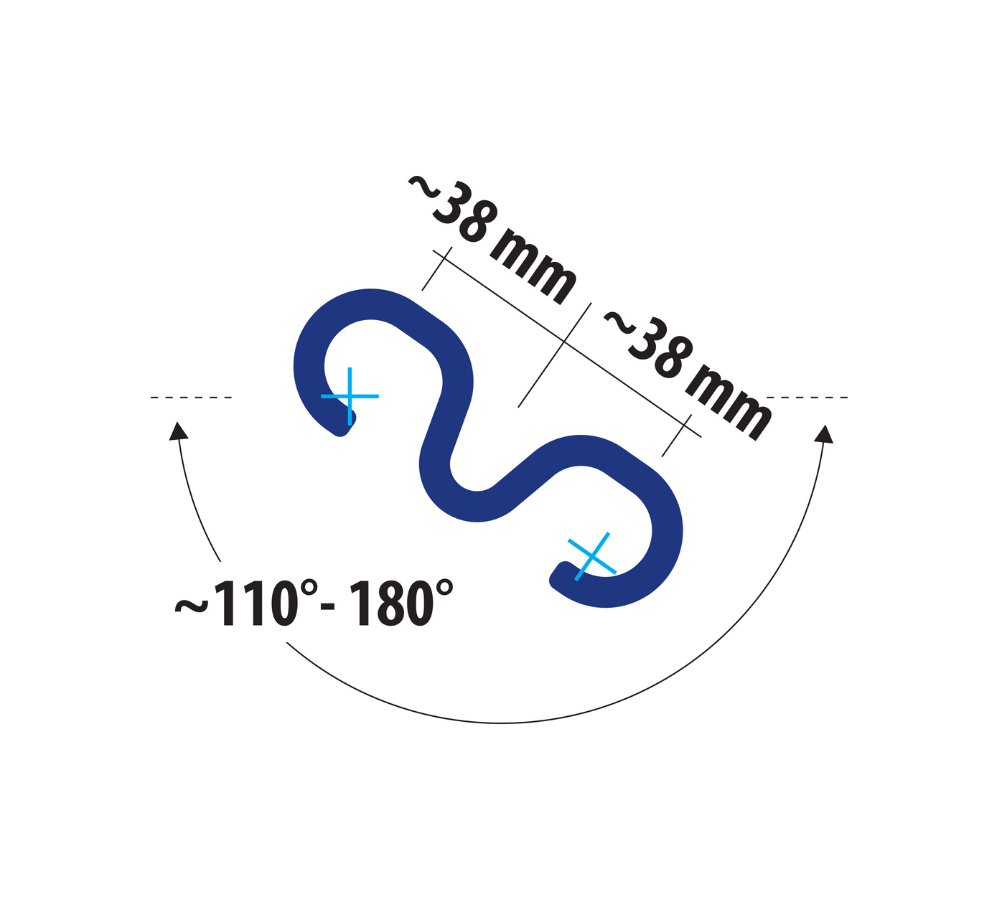

Technical illustration of LV Omega connector with omega-shaped interlock profile, 38 mm ends, and 110–180° angular flexibility.

6. LV Omega

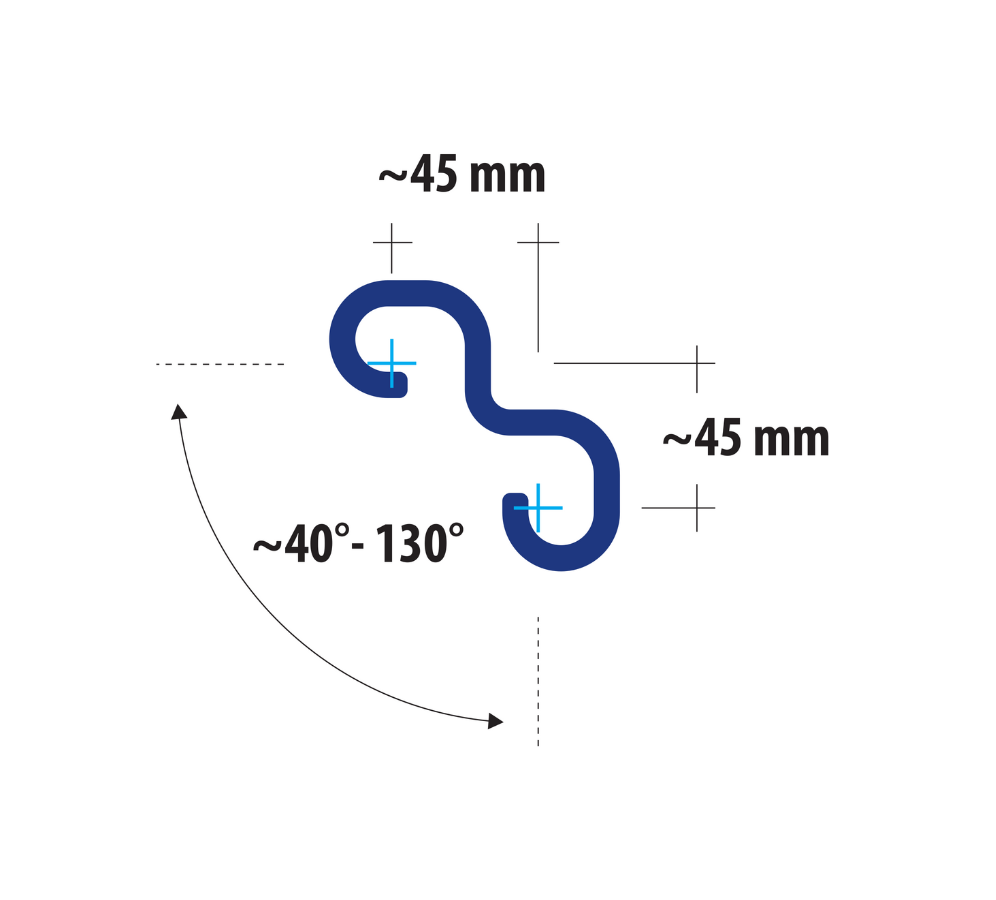

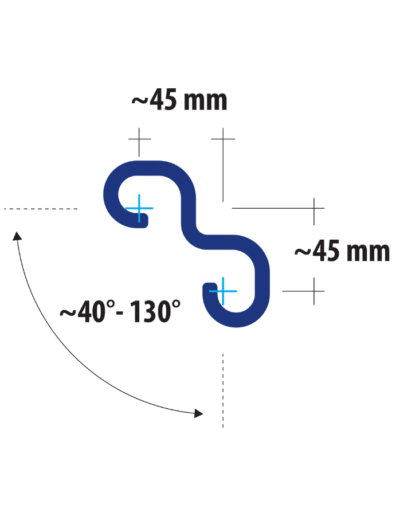

Technical drawing of LVO connector showing dual 45 mm ends and flexible interlock range suited for angled sheet pile junctions.

7. LVO

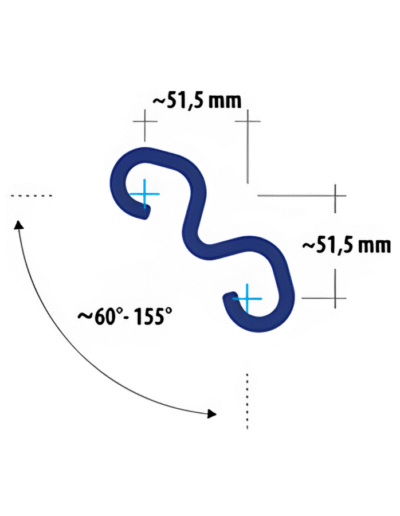

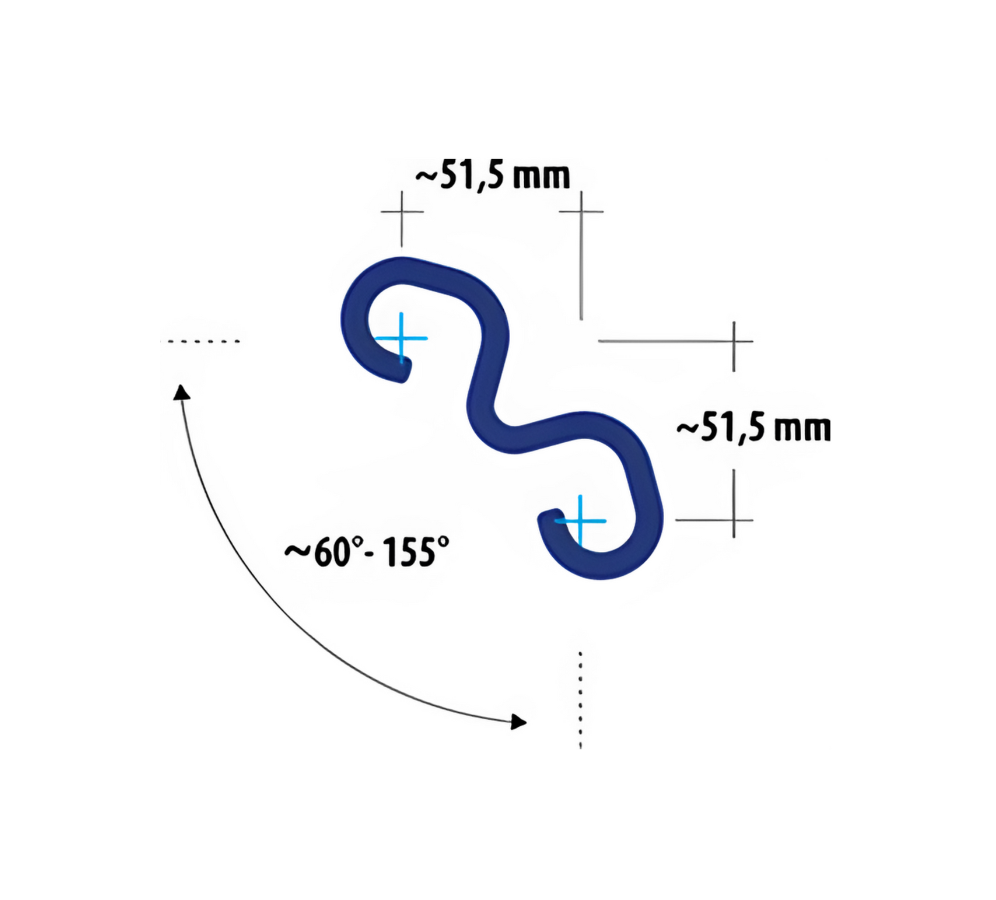

Technical drawing of LVOn connector featuring dual 51.5 mm profiles and a flexible angular range for joining sheet piles at different orientations.

8. LVOn

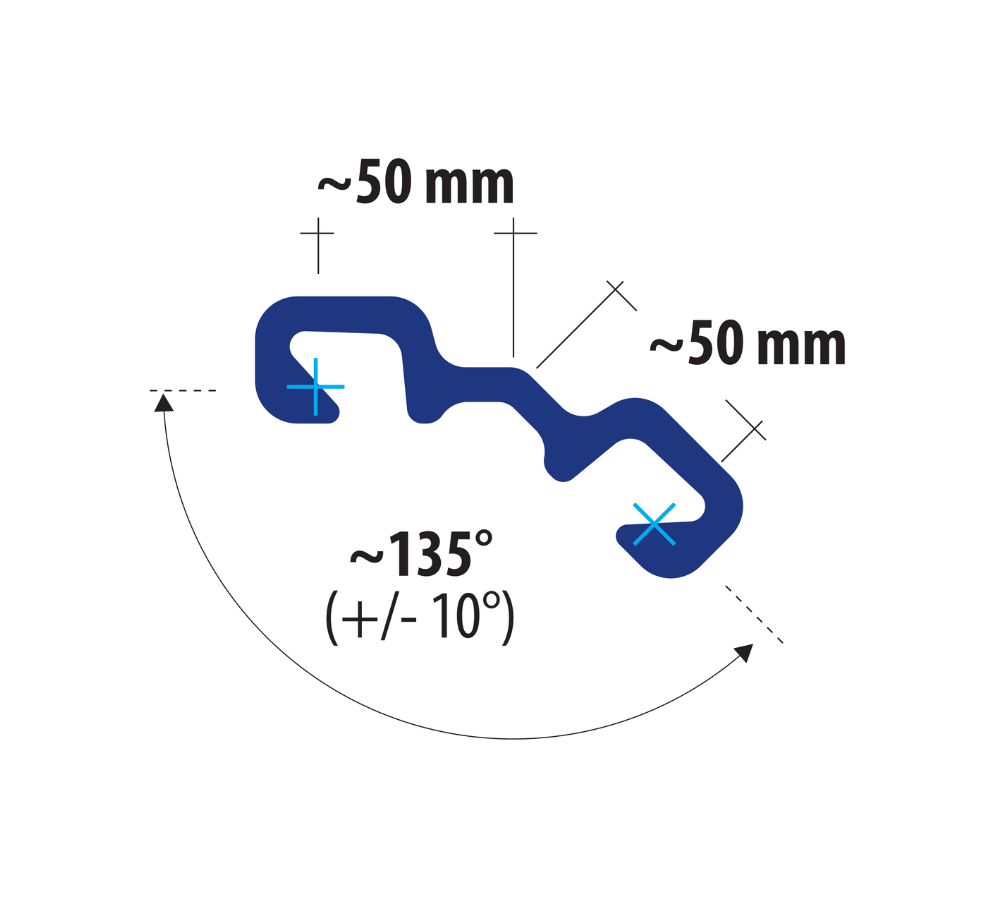

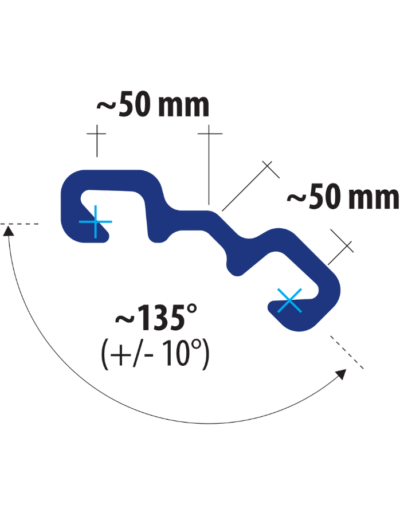

Technical drawing of LLO135 connector showing dual 50 mm interlock arms and a 135-degree flexible joint for corner transitions in sheet pile walls.

9. LLO135

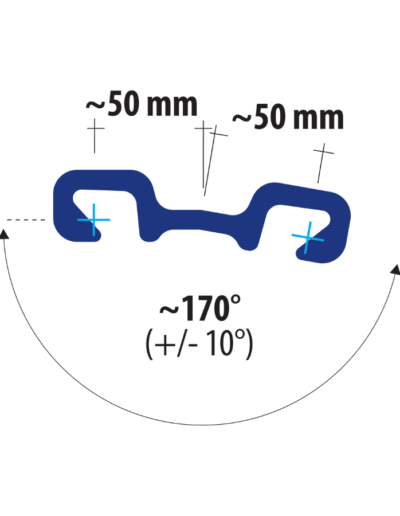

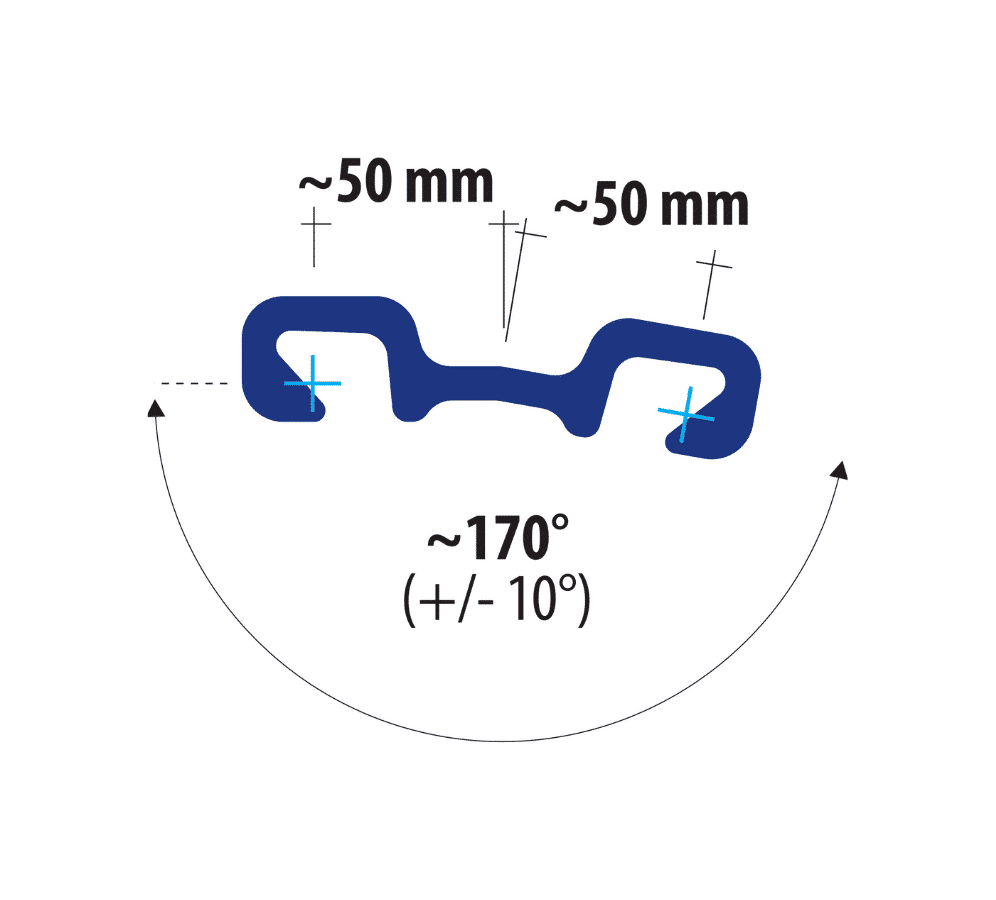

Technical illustration of LLO170 connector showing dual 50 mm interlock arms and a wide 170-degree angle range for flexible sheet pile alignment.

10. LLO 170

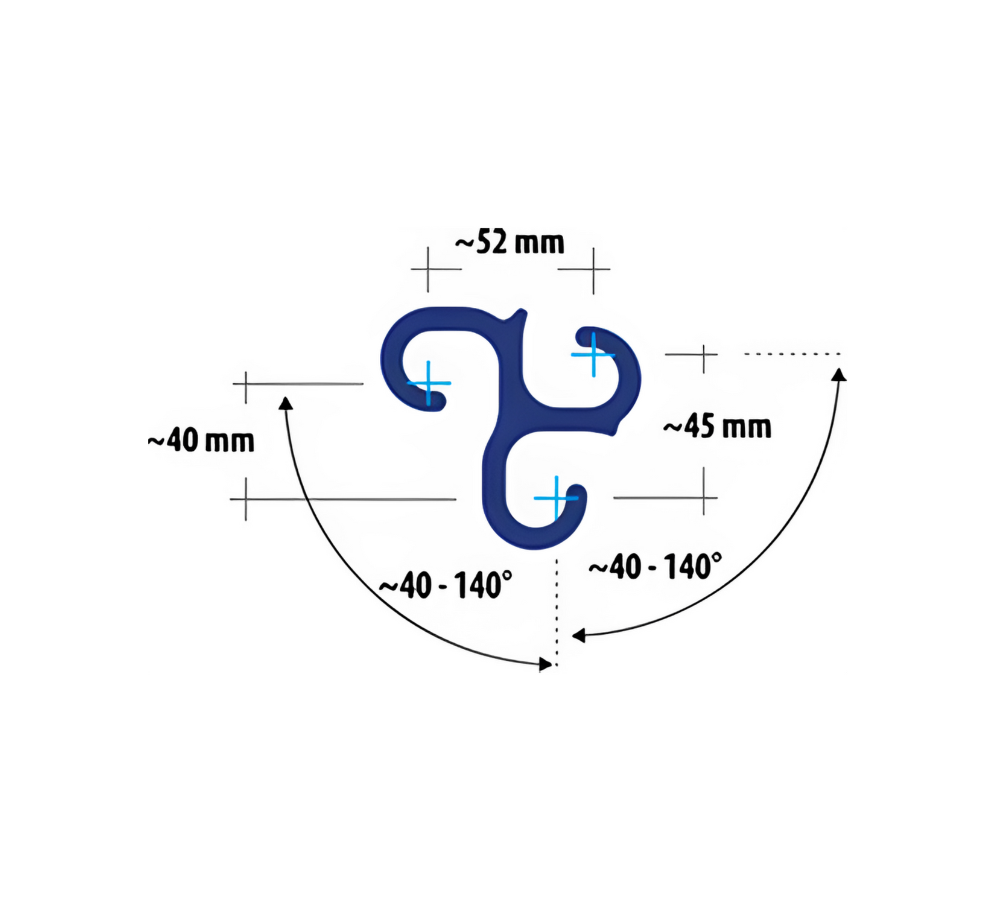

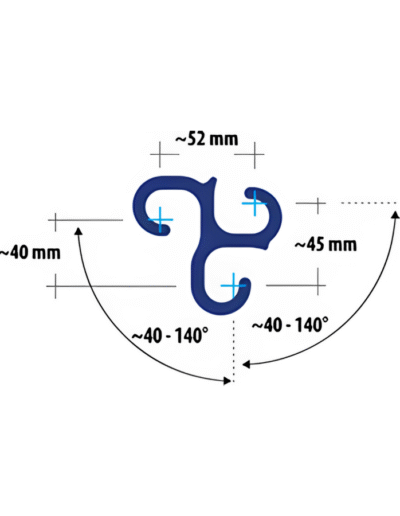

Diagram of LTn sheet pile connector with 52 mm vertical profile and three 40–140° interlock arms for multi-directional connections.

11. LTn

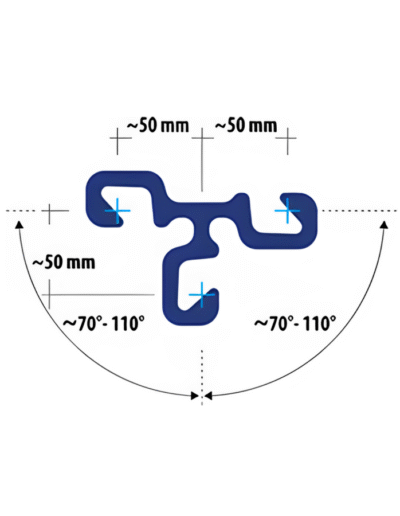

Diagram of LLTS sheet pile connector with three 50 mm interlock arms and angular flexibility between 70° and 110° for multi-directional connections.

12. LLTS

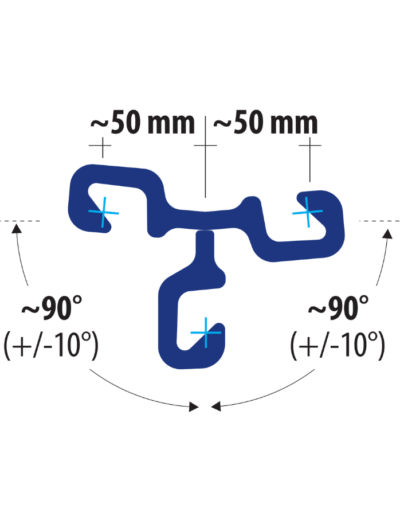

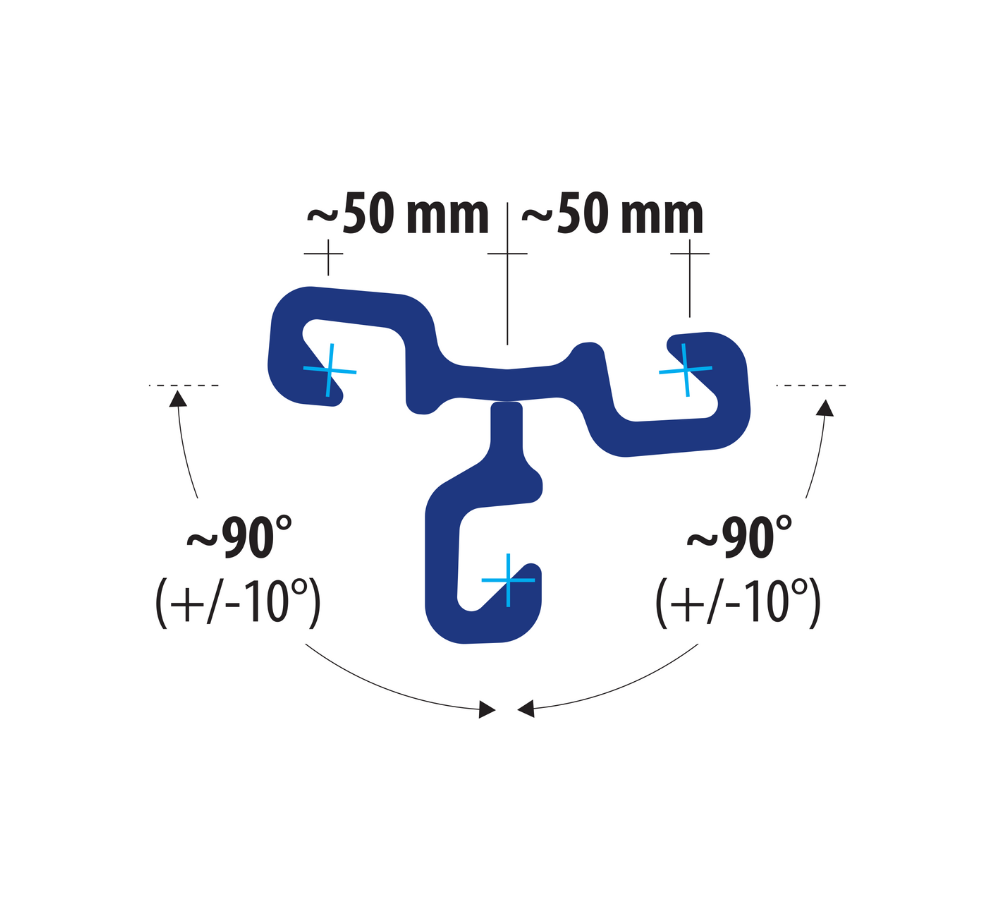

Diagram of LLTS MA sheet pile connector with three 50 mm arms and fixed 90° interlock angles ±10°, designed for T-junction configurations.

13. LLTS ma

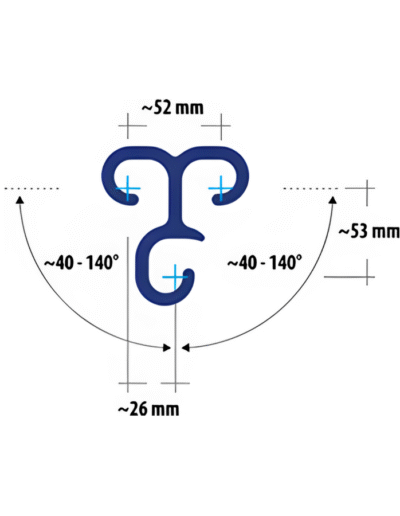

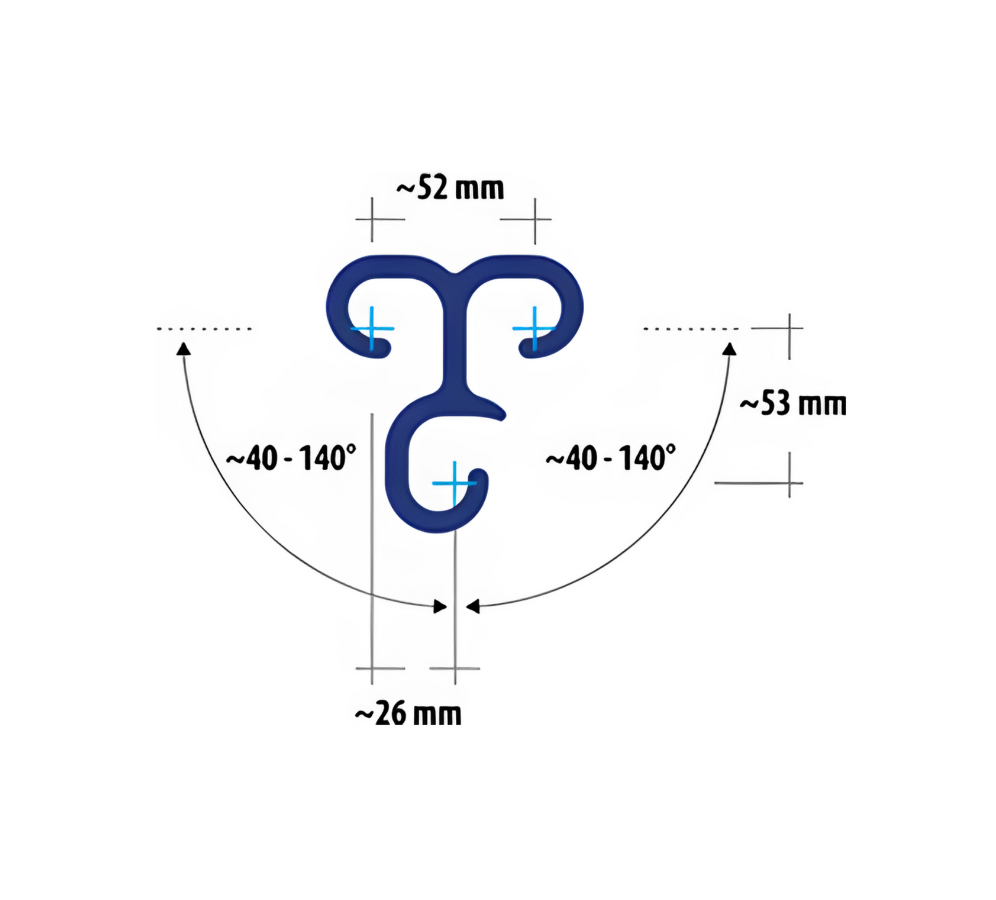

Technical drawing of LOTn connector showing a T-shaped profile with three angular connections and dimensional spacing between 26 mm and 53 mm.

14. LOTn

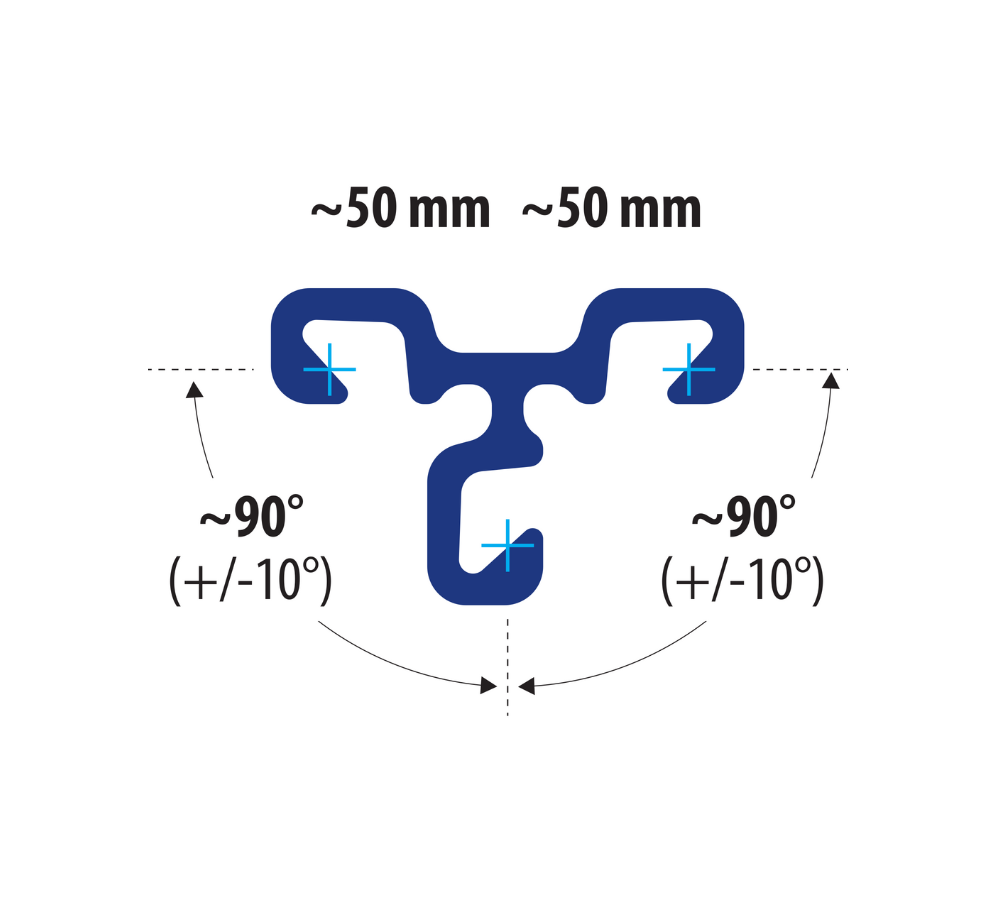

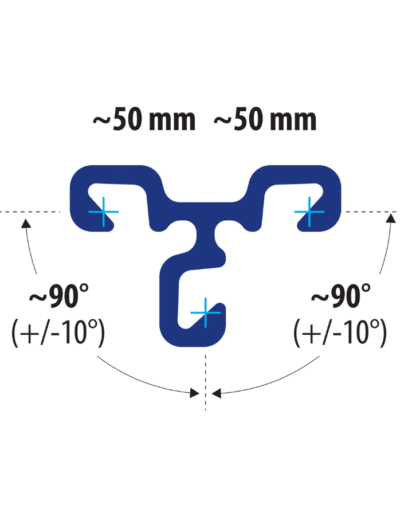

Diagram of LLTO sheet pile connector with three 50 mm interlock arms and fixed 90° angles ±10° for precise T-junction applications.

15. LLTO

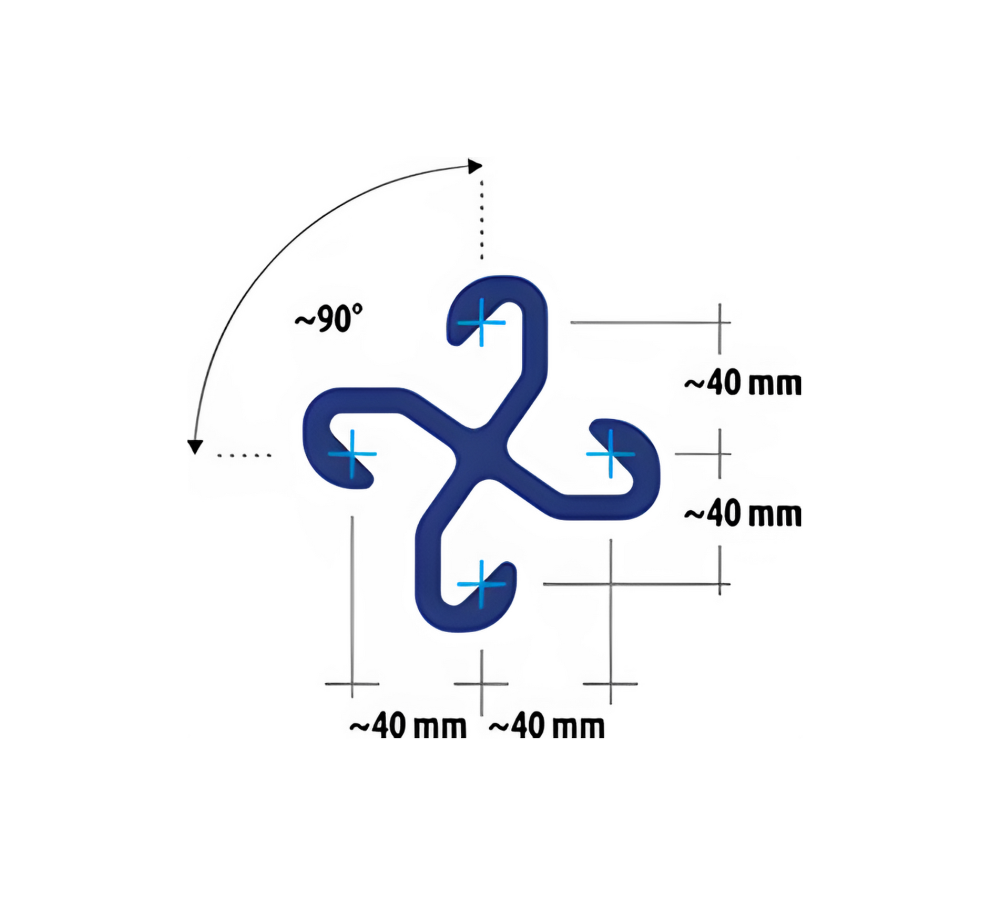

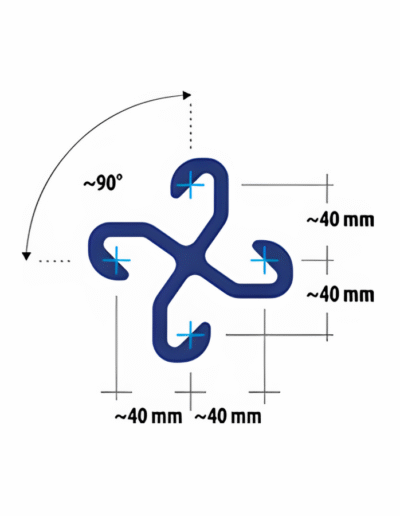

Technical illustration of L4S connector showing four-way interlock configuration with 90-degree spacing and equal 40 mm arm dimensions.

16. L4S

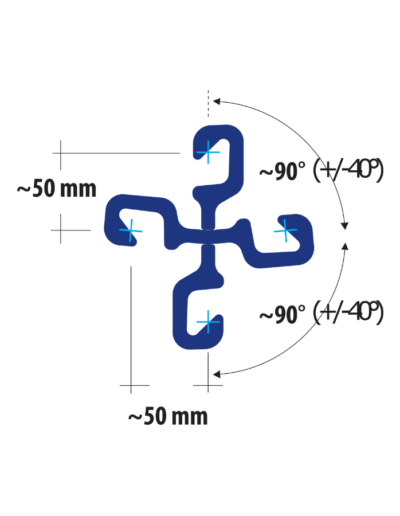

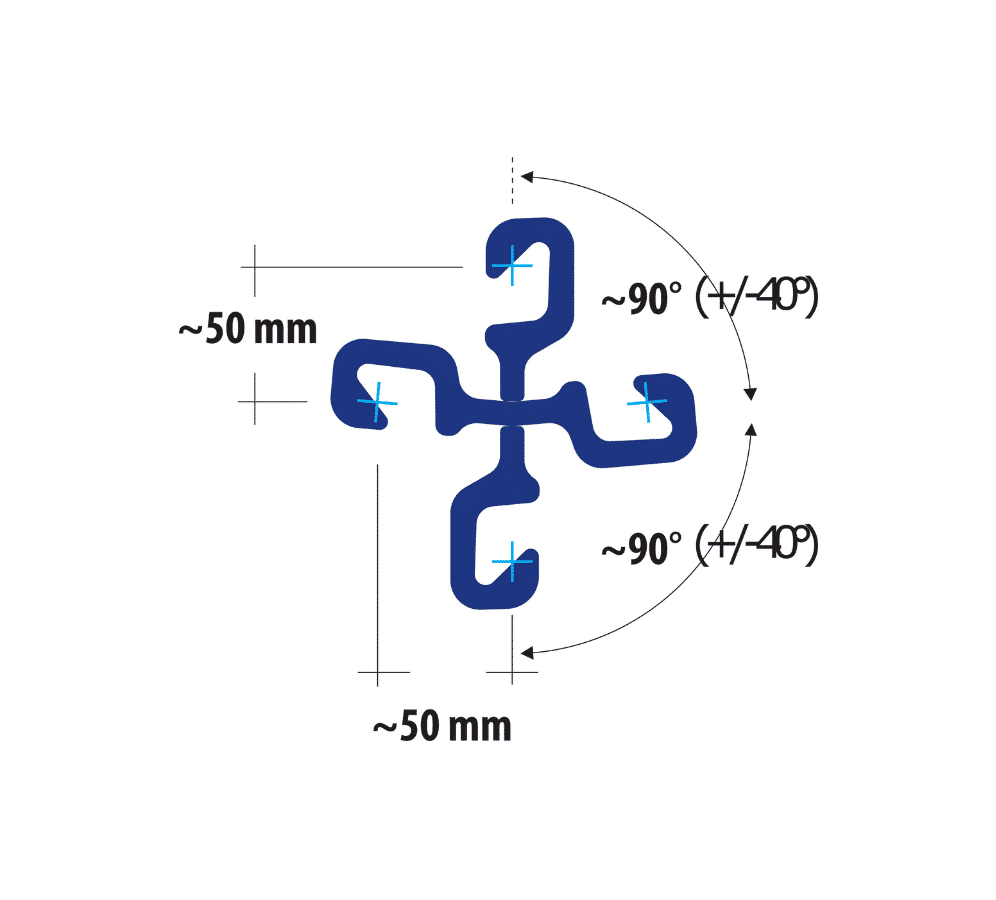

Diagram of LL4S MA sheet pile connector with four 50 mm arms and adjustable 90° angles ±40° for multi-directional interlocking configurations.

17. LL4S ma

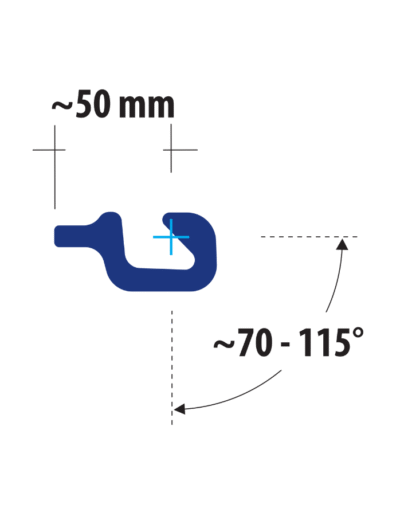

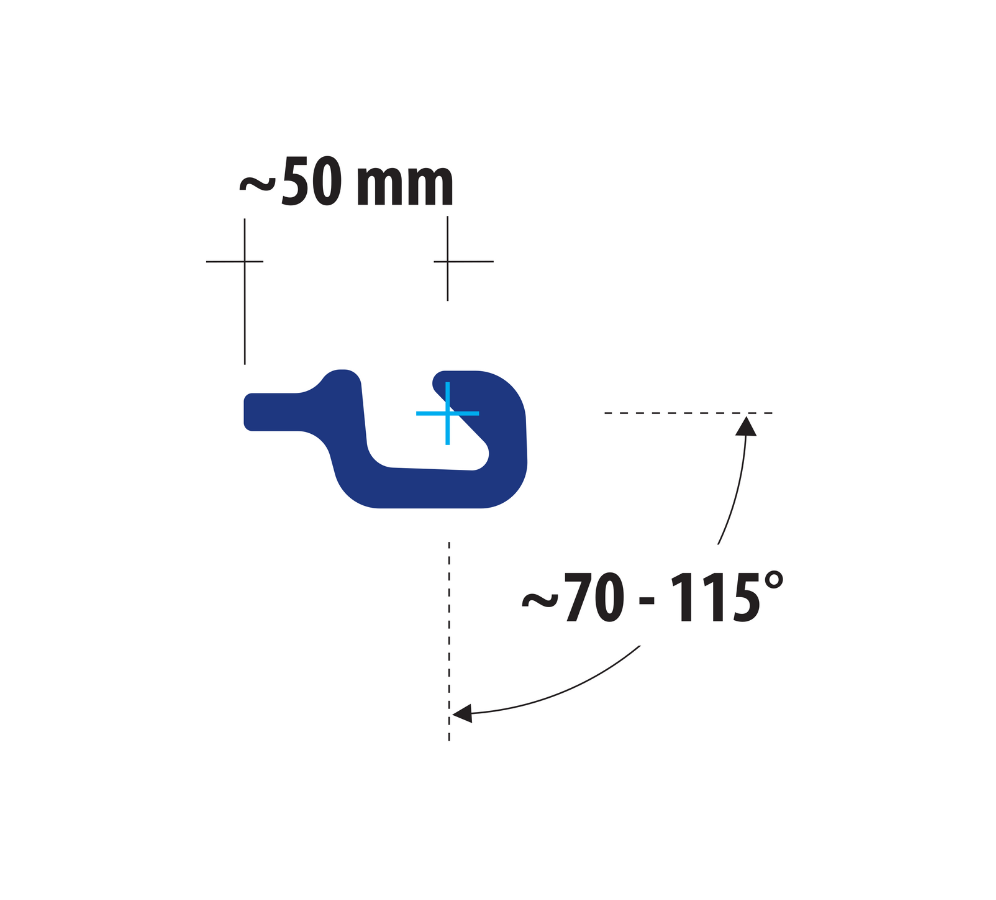

Technical illustration of LPB100-9A connector showing single-arm interlock design with 50 mm width and 70–115° angular flexibility.

18. LPB100-9A

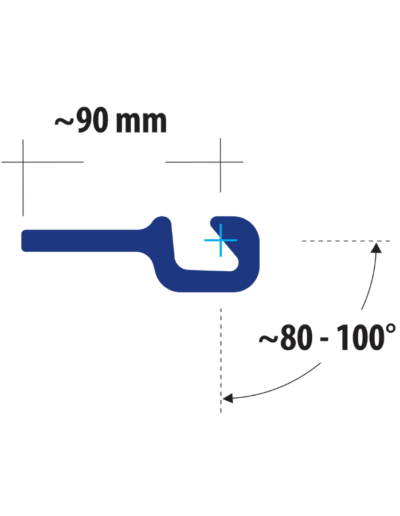

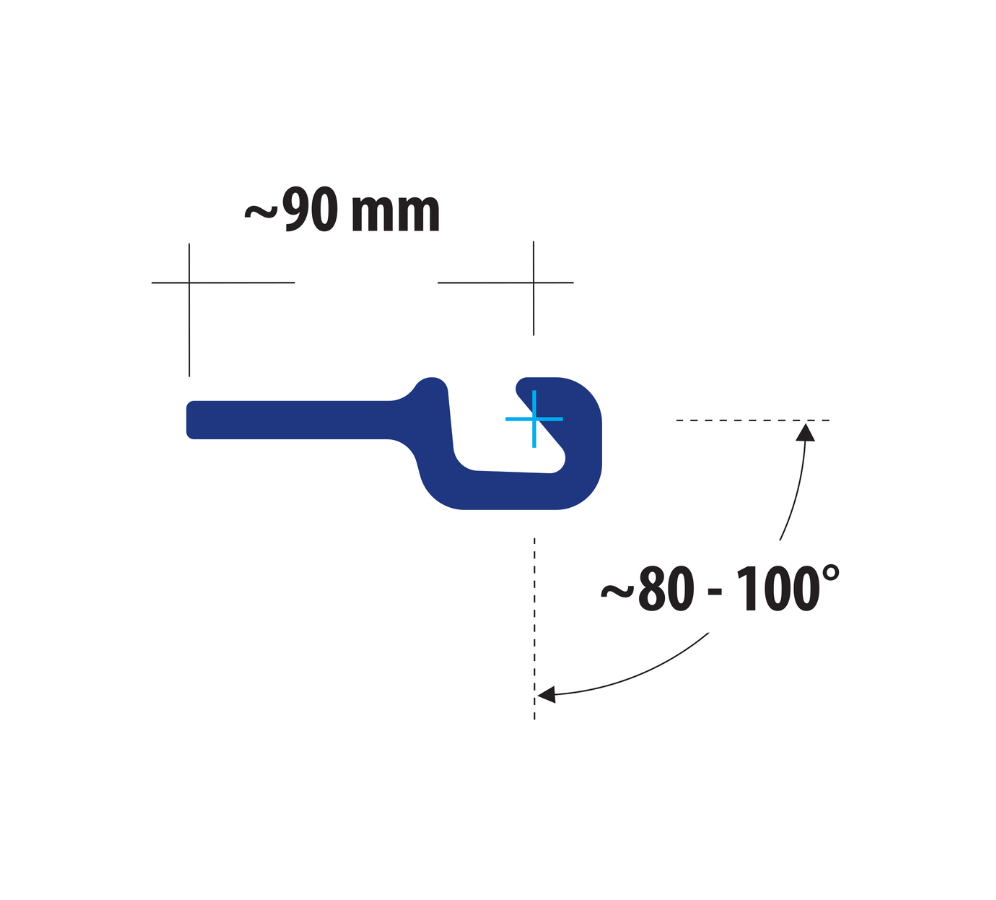

Diagram of LPB180-10 sheet pile connector with extended 90 mm profile and adjustable interlock angle range from 80° to 100°.

19. LPB180-10

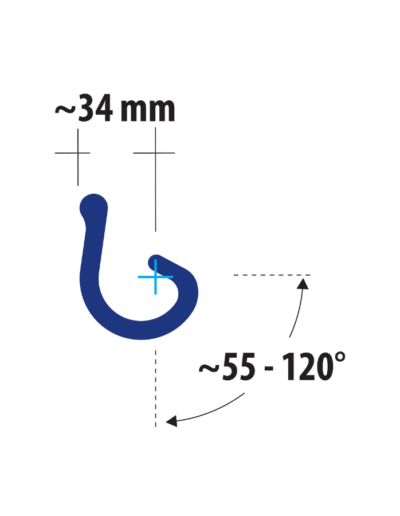

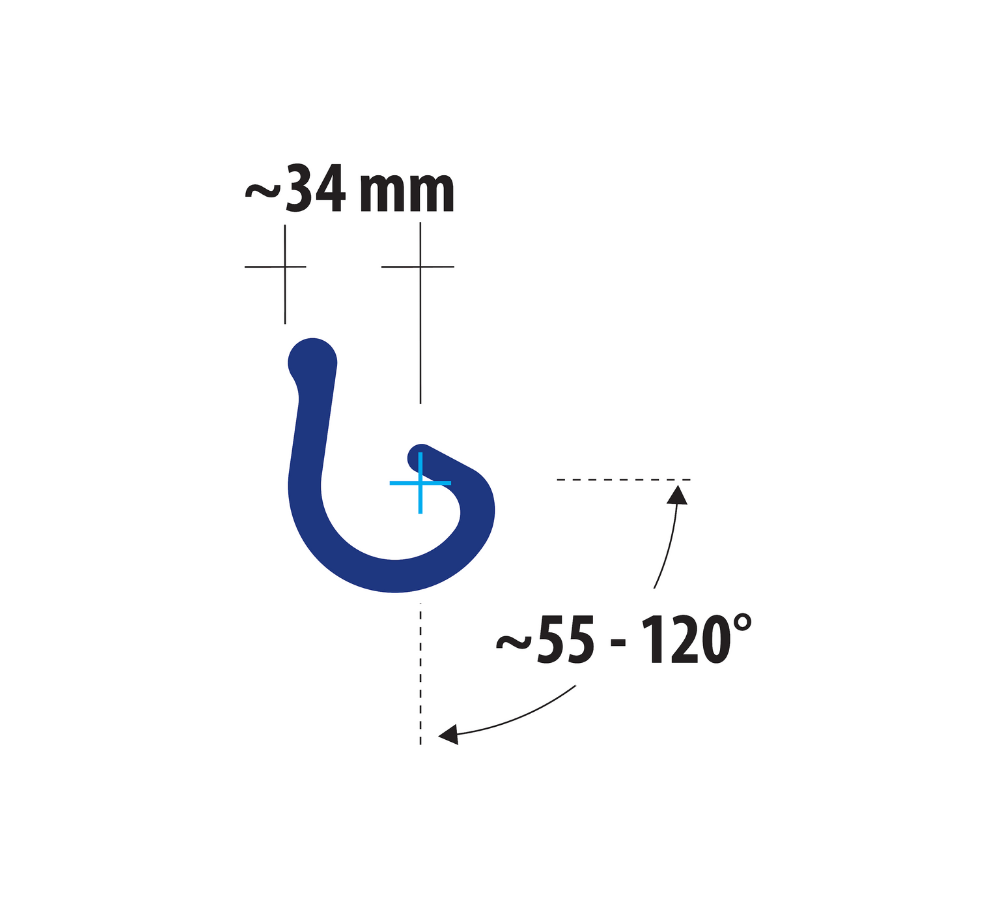

Diagram of LV22 sheet pile connector with 34 mm profile and adjustable angular range from 55° to 120° for single interlock configurations.

20. LV22

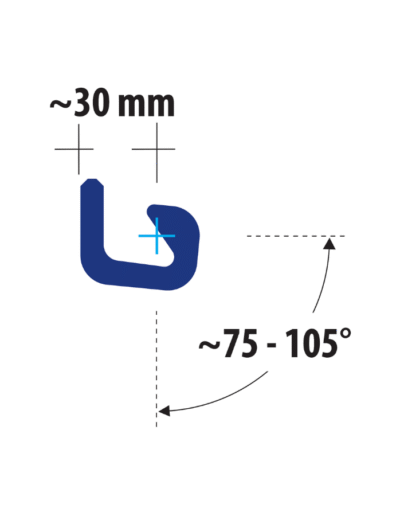

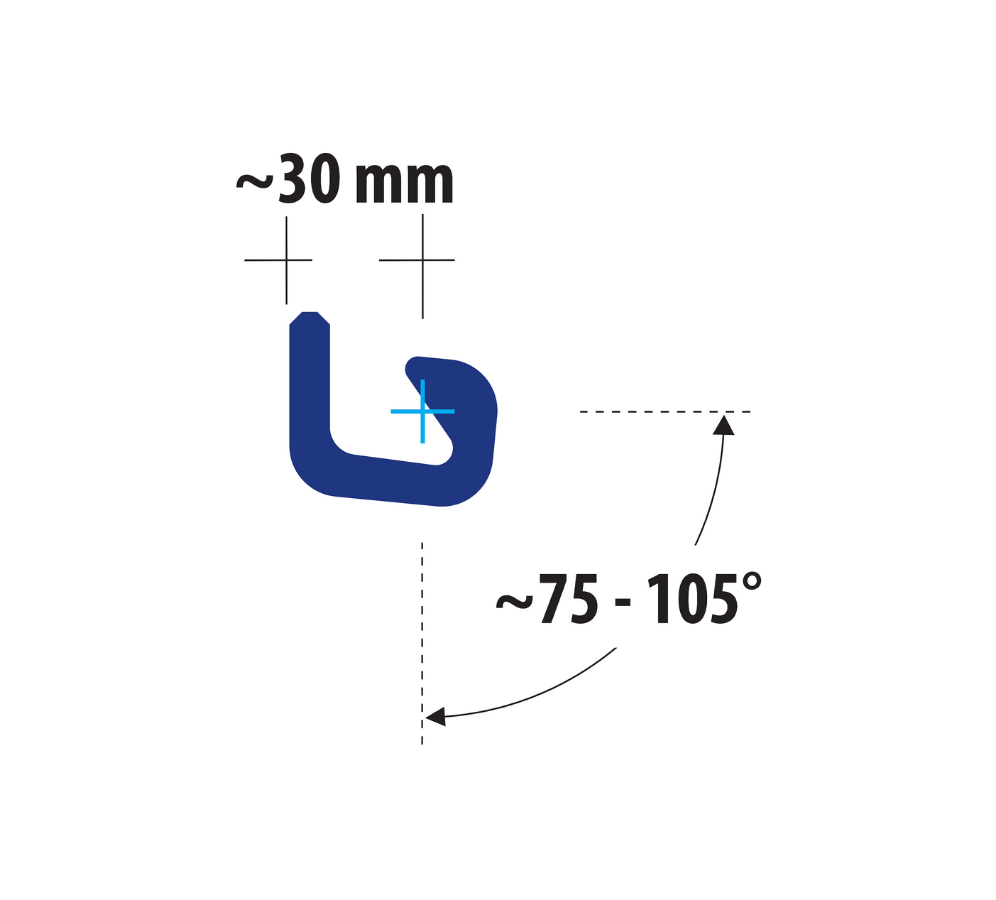

Technical drawing of L8/E22 hot-rolled connector, showing a compact single-arm interlock with a 30 mm width and 75–105° angle flexibility.

21. Hot Rolled connector L8_E22

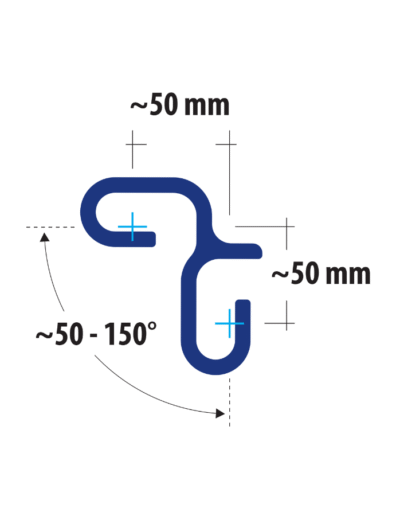

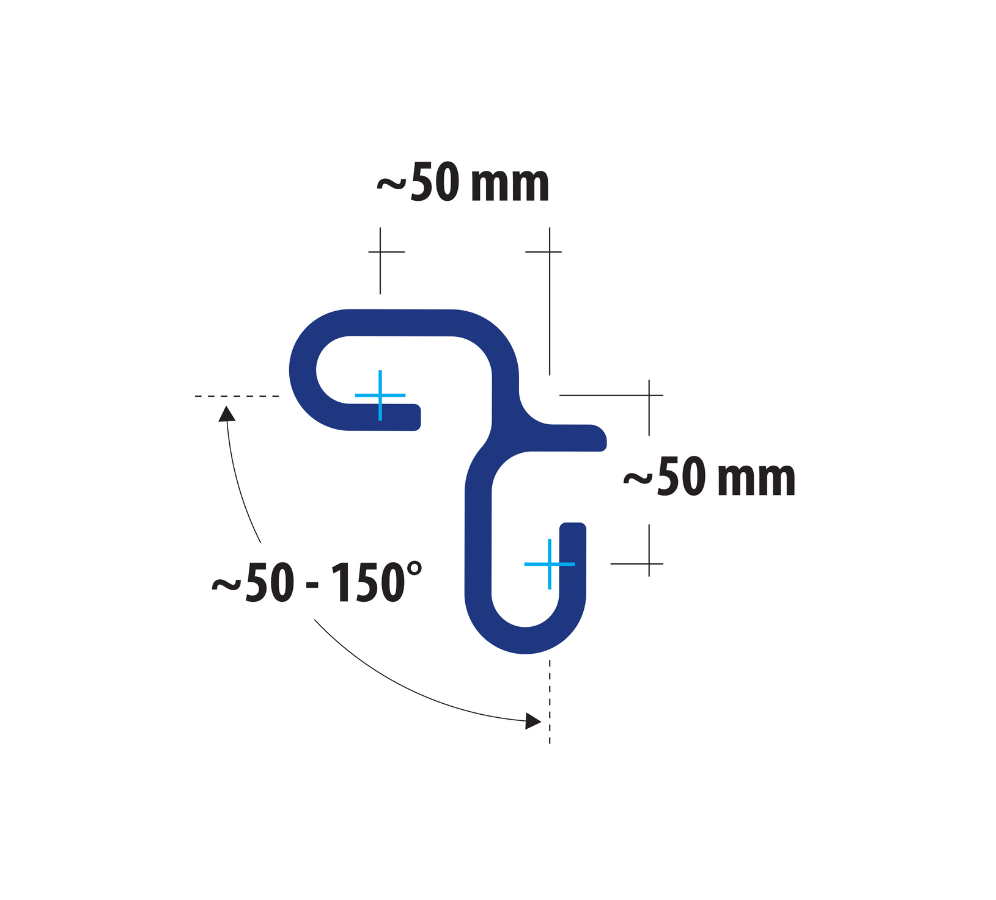

Diagram of CF90 weld-on pile connector with dual 50 mm interlock arms and adjustable angle range from 50° to 150°.

22. CF90

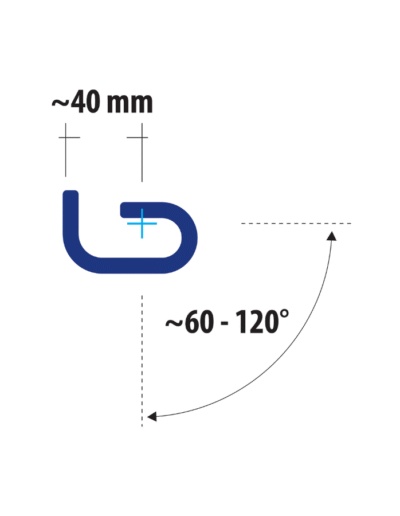

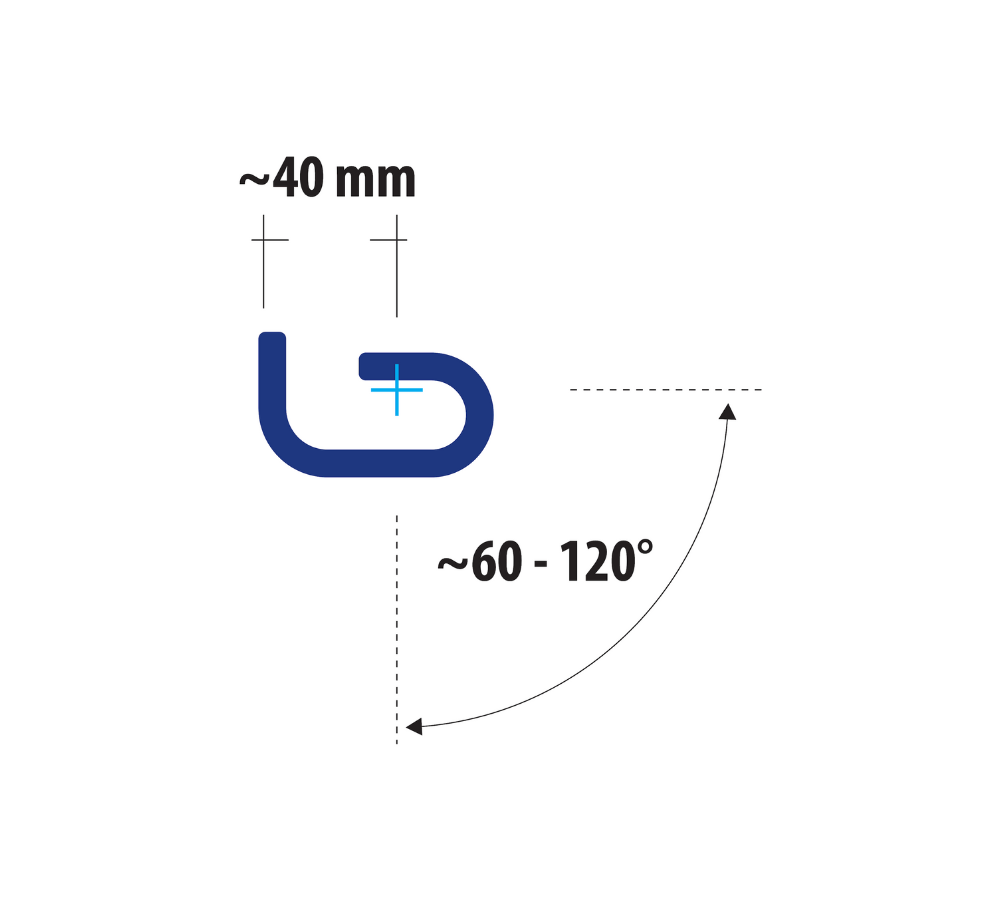

Technical illustration of CF-Junction connector featuring a compact 40 mm profile and curved geometry for flexible sheet pile connections.

23. Cold Formed Connectors CF-Junction

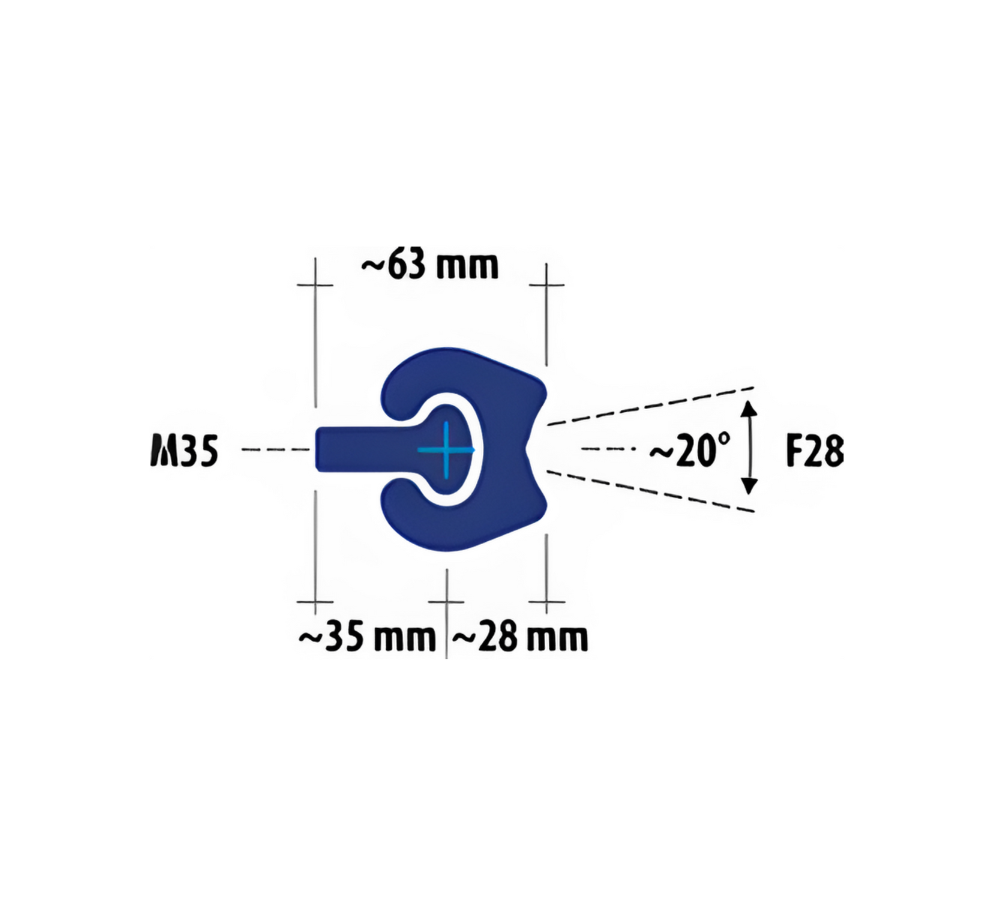

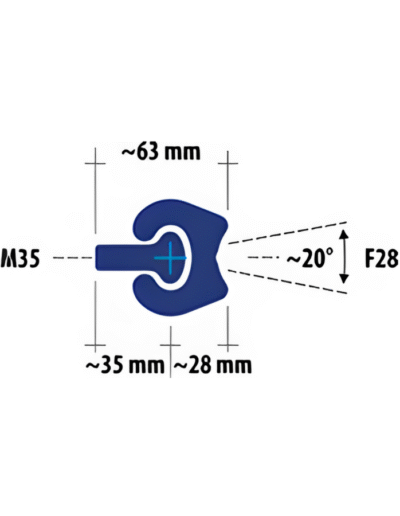

Technical diagram of MF63 connector for pipe pile walls, showing M35 and F28 interlocks, 63 mm width.

24. MF63

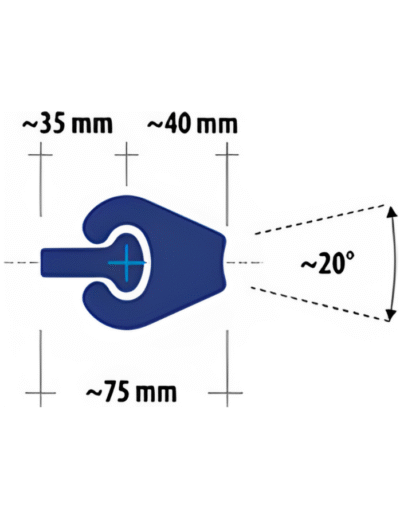

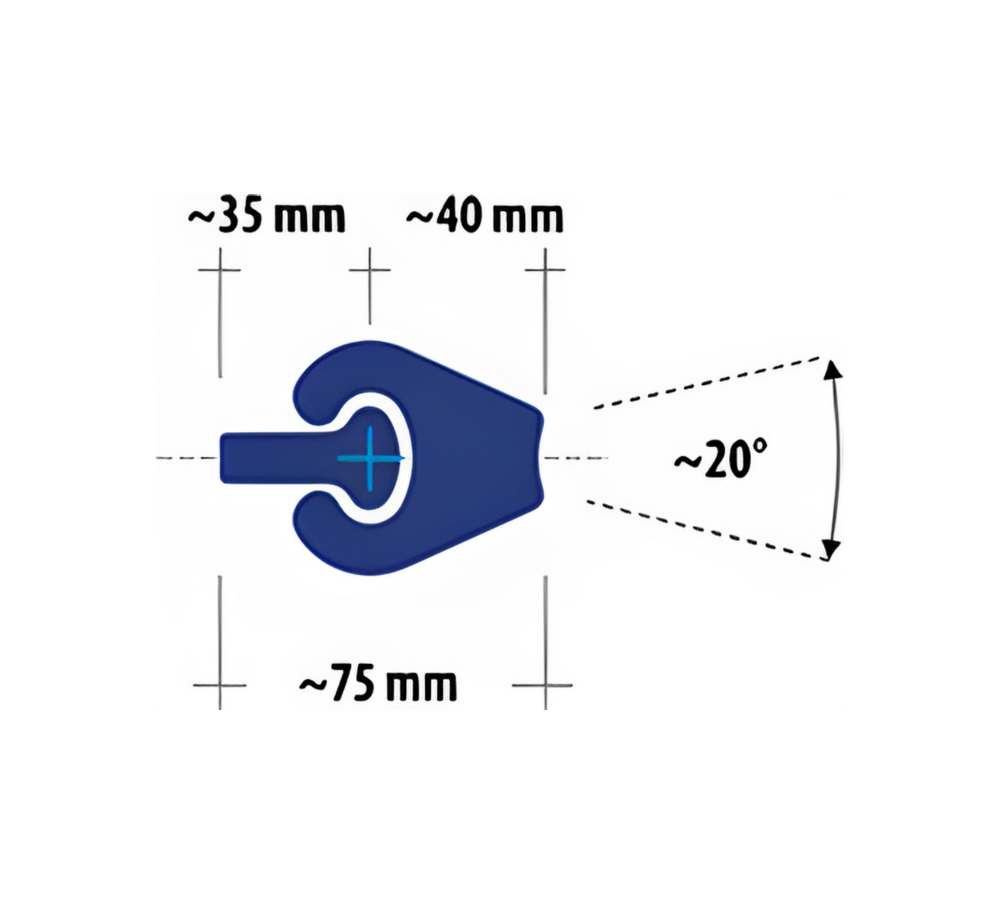

MF75 pipe pile connector with 35 mm and 40 mm interlock segments, 75 mm total width, and 20-degree angle opening.

25. MF75

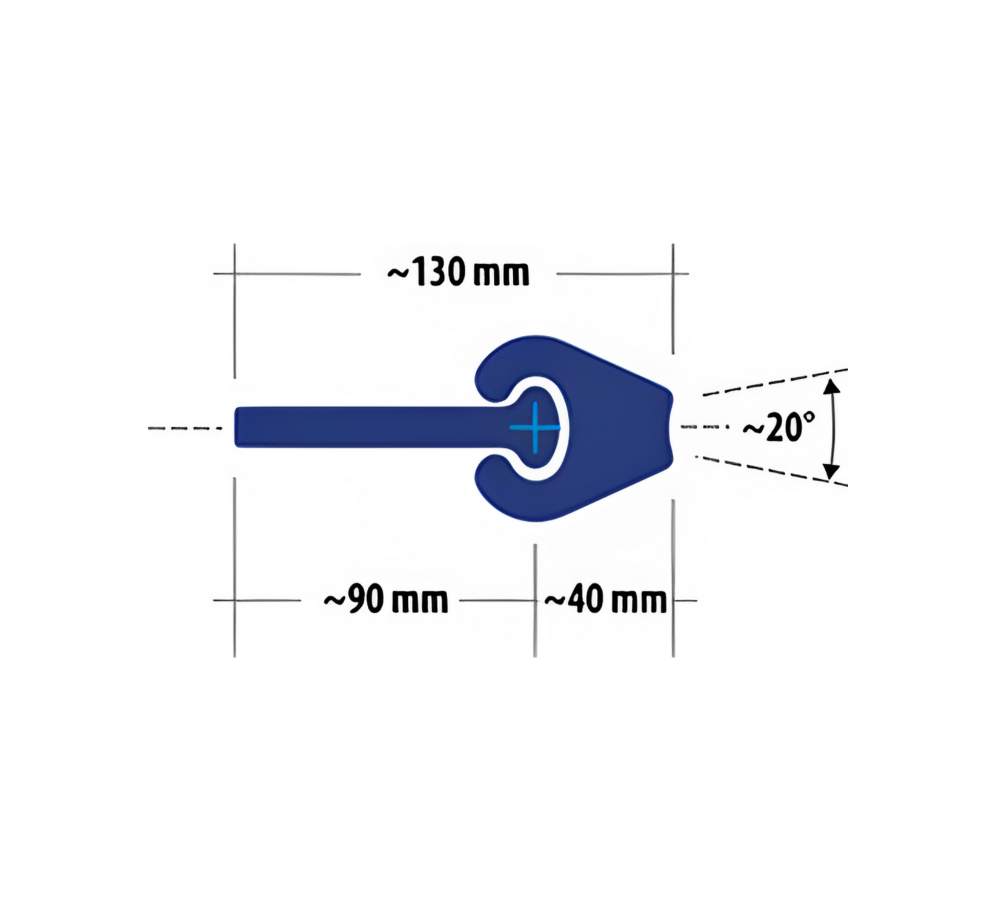

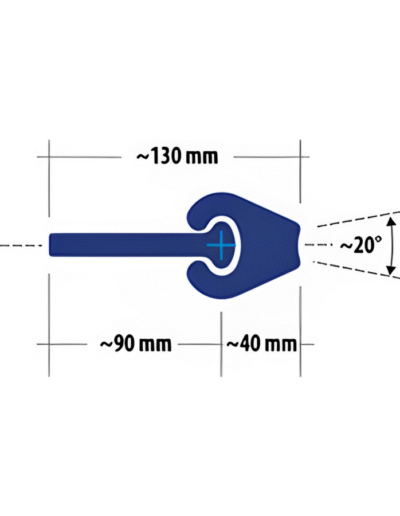

Diagram of MF130 connector for pipe pile walls, featuring 130 mm total width with M90, 90mm width and F40, 40mm width

26. MF130

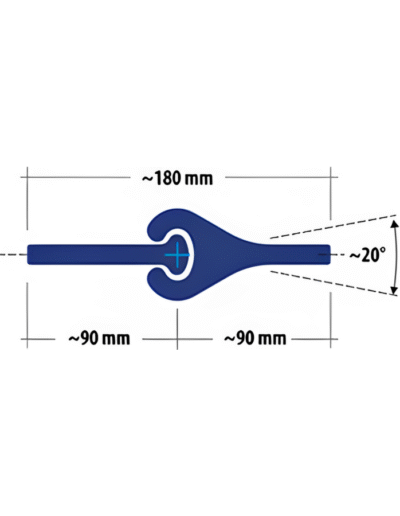

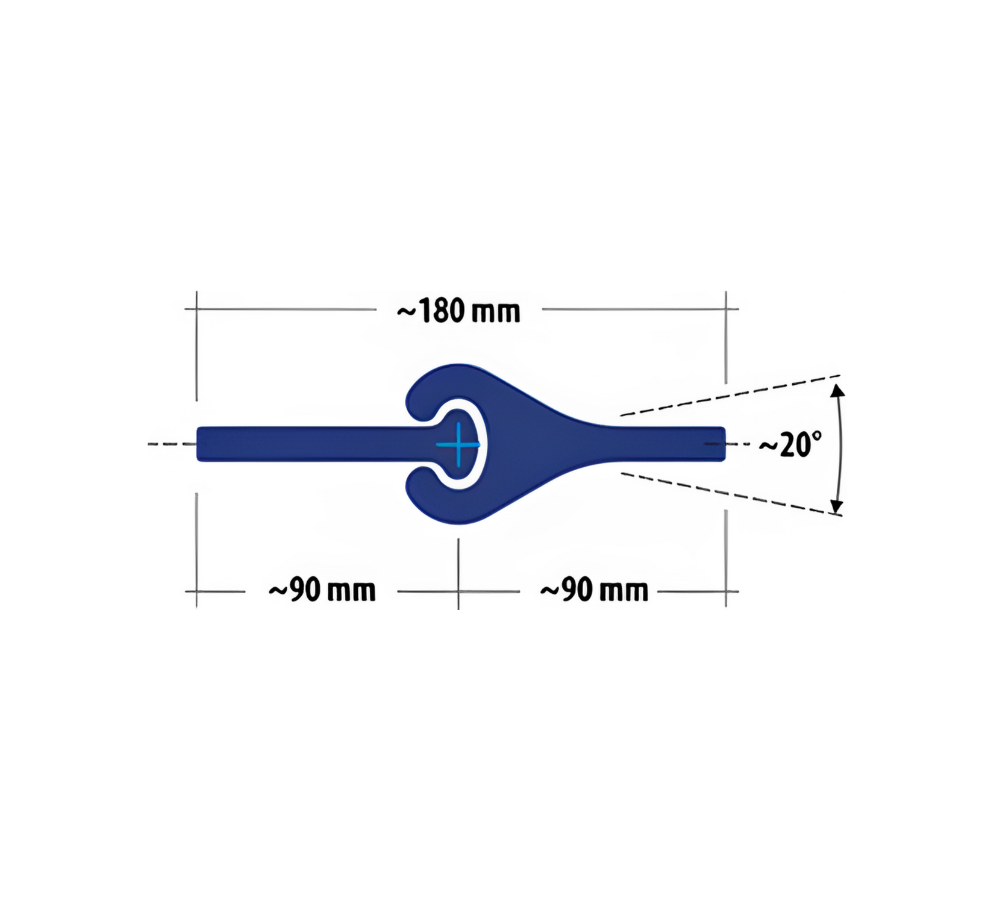

Technical diagram of MF180b connector for pipe pile walls, with 180 mm body length, 90 mm segments on each side, and a 20° angular spread.

27. MF 180b

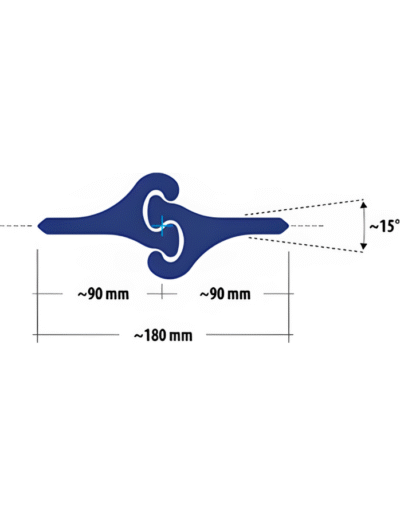

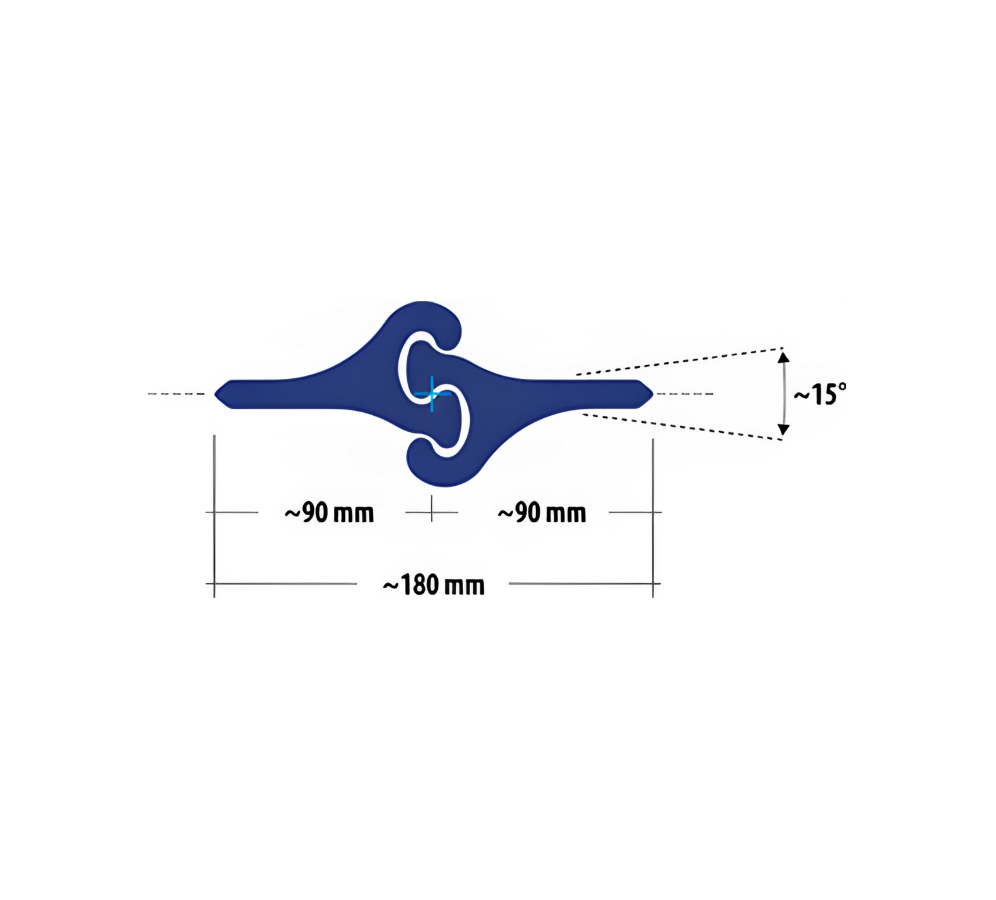

FD180 connector for pipe pile walls featuring a 180 mm body length, dual 90 mm extensions, and a 15° interlock angle for precise alignment.

28. FD180

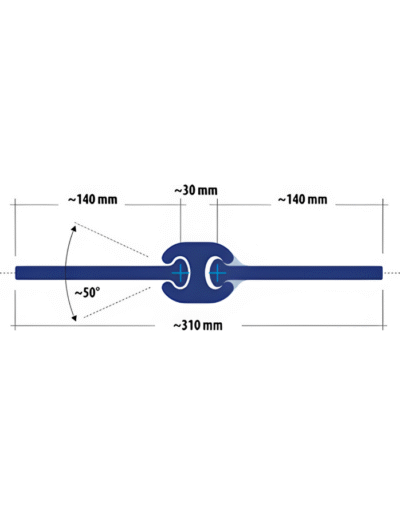

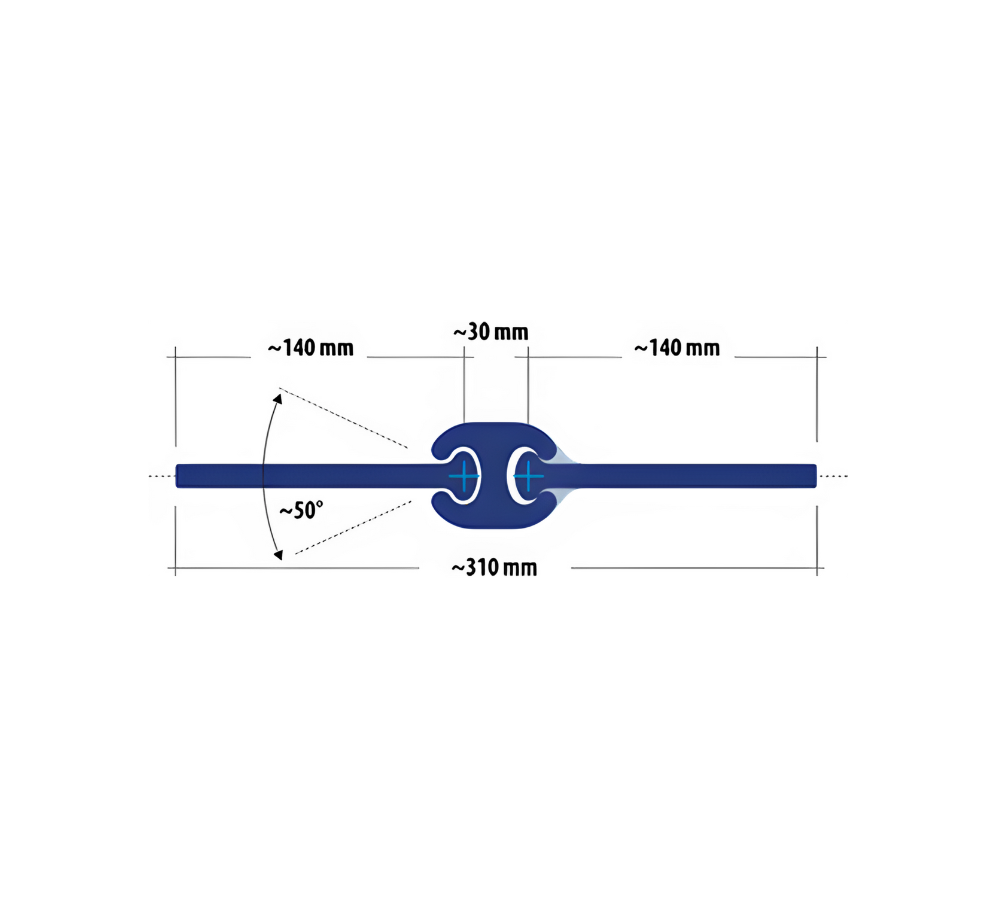

MDF310 pipe pile connector with a total length of 310 mm, dual 140 mm extensions, a central 30 mm interlock section

29. MDF 310

Specifications

Name Type Steel grade Steel thickness (mm) Dimension (mm) Weight (kg)
Ultra S Corner connector S355 9 11.8 25.3
LV20n Corner connector S355 8 11.8, 14, 18 14.07
LLS90 Corner connector S355 9 8, 11.8 17.66
LLS135 Corner connector S355 9 8, 11.8 17.66
LLS170 Corner connector S355 9 8, 11.8 17.63
LV-Omega Corner connector omega S355 8 11.8, 13.4 14.04
LVO Corner connector omega S355 8 11.8, 13.4 13.85
LVOn Corner connector omega S355 8 11.8, 13.4 13.91
LLO135 Corner connector omega S355 9 11.8, 13.4 17.60
LLO170 Corner connector omega S355 9 11.8, 13.4 17.60
LTn T-connector S355 8 11.8, 13.8 15.50
LLTS T-connector S355 9 10.8 26.2
LLTS ma T-connector S355 9 10.8 27.00
LOTn T-connector S355 8 11.8, 13.8 17.20
LLTO T-connector S355 9 10.8 26.20
L4S Cross profile S355 8 11.8 23.20
LL4S ma Cross profile S355 9 11.8 36.00
LPB100-9A Weld-on connector S355, S430 9 8, 11.8 9.05
LPB180-10 Weld-on connector S355, S430 10 8, 11.8 12.94
LV22 Weld-on connector S355 8 11.8 8.02
L8/E22 Weld-on connector S355 9.5 11.8 8.47
CF90 Corner & weld-on profile S355 8 13.45 17.50
CF-Junction Corner & weld-on profile S355 8 11.8 8.87
MF63 Connector for Pipe Pile walls S355 12 8, 11.8 M35: 4.76
MF75 Connector for Pipe Pile walls S355 12 8, 11.8 M35: 4.76
F40: 14.28
MF130 Connector for Pipe Pile walls S355 12 8, 11.8 M90: 9.76
F40: 14.28
MF180b Connector for Pipe Pile walls S355 12 8, 11.8 M90: 9.76
F90: 18.42
FD180 Connector for Pipe Pile walls S355 12 8, 11.8 17.42
MDF310 Connector for Pipe Pile walls M: S355
DF: S430		 12 8, 11.8 M140: 14.77
DF: 14.62

Swipe

Note: The above specification is only a part of all the sizes; more sizes are available to suit specific project needs. Contact us for detailed information and customised solutions.
